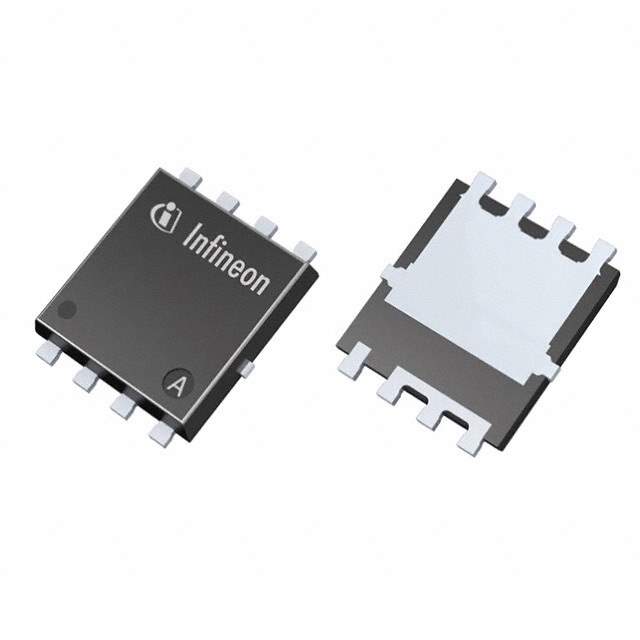

Same model may have multiple batches, images only for reference.

IAUC90N10S5N062ATMA1

Name: IAUC90N10S5N062ATMA1
Brand: Infineon Technologies
SKU: 1337184
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IAUC90N10S5N062ATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 90A TDSON-8-34 / N-Channel 100 V 90A (Tc) 115W (Tc) Surface Mount PG-TDSON-8-34
Datasheet	IAUC90N10S5N062ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	OptiMOS™-5
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	6.2mOhm @ 45A, 10V
Vgs(th) (Max) @ Id	3.8V @ 59µA
Gate Charge (Qg) (Max) @ Vgs	36 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3275 pF @ 50 V
Power Dissipation (Max)	115W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-34
Package / Case	8-PowerTDFN
Base Product Number	IAUC90
Standard Package	5,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1337184-IAUC90N10S5N062ATMA1
Ultra Librarian 3D Model	Ultra Librarian IAUC90N10S5N062ATMA1 CAD Model

Alternative Products

Description

The Infineon Technologies OptiMOS-5 IAUC90 MOSFET is an N-Channel FET type.

Drain to Source Voltage (Vdss): 100V
Power Dissipation (Max): 115W (Tc)
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Package / Case: 8-PowerTDFN
Operating Temperature: -55°C to 175°C (TJ)
Base Product Number: IAUC90
Input Capacitance (Ciss) (Max) @ Vds: 3275 pF @ 50V
