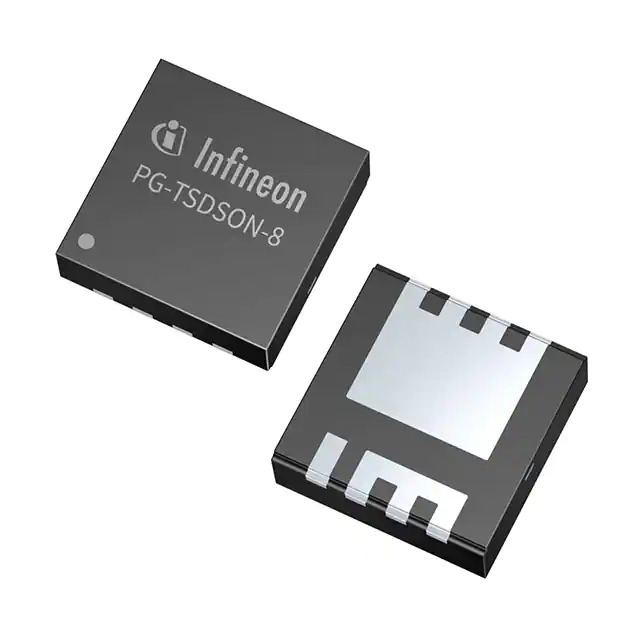

Same model may have multiple batches, images only for reference.

IAUZ40N06S5N050ATMA1

Name: IAUZ40N06S5N050ATMA1
Brand: Infineon Technologies
SKU: 1353077
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IAUZ40N06S5N050ATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 40A TSDSON-8-33 / N-Channel 60 V 40A (Tj) 71W (Tc) Surface Mount PG-TSDSON-8-33
Datasheet	IAUZ40N06S5N050ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	OptiMOS™-5
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	40A (Tj)
Rds On (Max) @ Id, Vgs	5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.4V @ 29µA
Gate Charge (Qg) (Max) @ Vgs	30.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2200 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	71W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSDSON-8-33
Package / Case	8-PowerTDFN
Base Product Number	IAUZ40
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1353077-IAUZ40N06S5N050ATMA1
Ultra Librarian 3D Model	Ultra Librarian IAUZ40N06S5N050ATMA1 CAD Model

Alternative Products

Description

The 1353077-IAUZ40N06S5N050ATMA1 is a single N-channel MOSFET transistor manufactured by Infineon Technologies.

Series: OptiMOS™-5
Application: Discrete Semiconductor
Operating Temperature: -55°C to 175°C
Drain-Source Voltage (Vdss): 60V
Continuous Drain Current (Id): 40A
On-Resistance (Rds(on)): 5mOhm @ 20A, 10V
Gate Charge (Qg): 30.5nC @ 10V
Package: 8-PowerTDFN
Mounting Type: Surface Mount
