ICE3AR10080JZTXKLA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

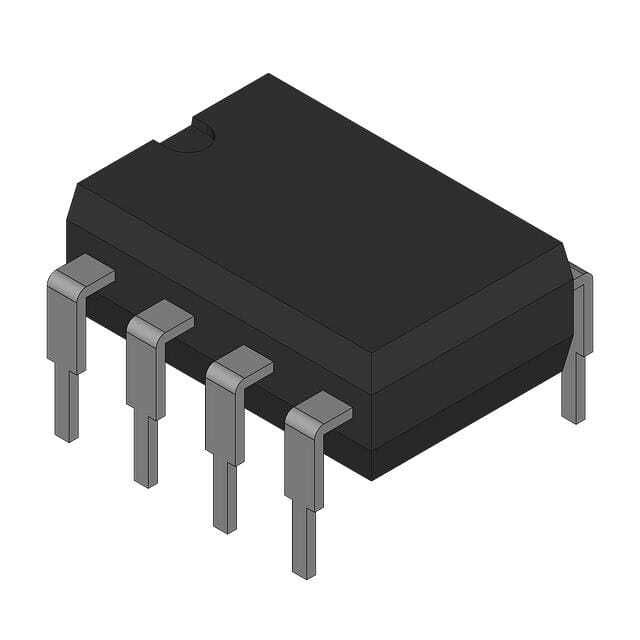

ICE3AR10080JZTXKLA1

Part No ICE3AR10080JZTXKLA1
Manufacturer Infineon Technologies
Catalog PMIC - AC DC Converters, Offline Switchers
Description 1.1A, 113KHZ SWITCHING FREQ-MAX / Converter Offline Flyback Topology 100kHz PG-DIP-7-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - AC DC Converters, Offline Switches
Mfr Infineon Technologies
Series CoolSET®-F3r80
Package Bulk
Product Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 800V
Topology Flyback
Voltage - Start Up 17 V
Voltage - Supply (Vcc/Vdd) 10.5V ~ 27V
Duty Cycle 75%
Frequency - Switching 100kHz
Power (Watts) 22 W
Fault Protection Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, UVLO
Control Features Soft Start
Temperature Range - Operating -20°C ~ 150°C (TJ)
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package PG-DIP-7-4
Mounting Type Through Hole
Base Product Number ICE3AR10080
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1022125-ICE3AR10080JZTXKLA1
Ultra Librarian 3D Model Ultra Librarian ICE3AR10080JZTXKLA1 CAD Model

Description

The ICE3AR10080JZTXKLA1 is an AC/DC converter and offline switch integrated circuit from the CoolSET®-F3r80 series.

  • Power: 22 W
  • Isolation: Output isolation
  • Breakdown Voltage: 800V
  • Duty Cycle: 75%
  • Topology: Flyback
  • Voltage Supply: 10.5V to 27V
  • Switching Frequency: 100kHz
  • Fault Protection: Current limiting, open loop, over load, over temperature, over voltage, and under voltage lockout (UVLO)
  • Package: Through-Hole (8-DIP, 7.62mm)
  • Product Line: Infineon Technologies
  • Status: Active
  • Temperature Range: -20°C to 150°C
