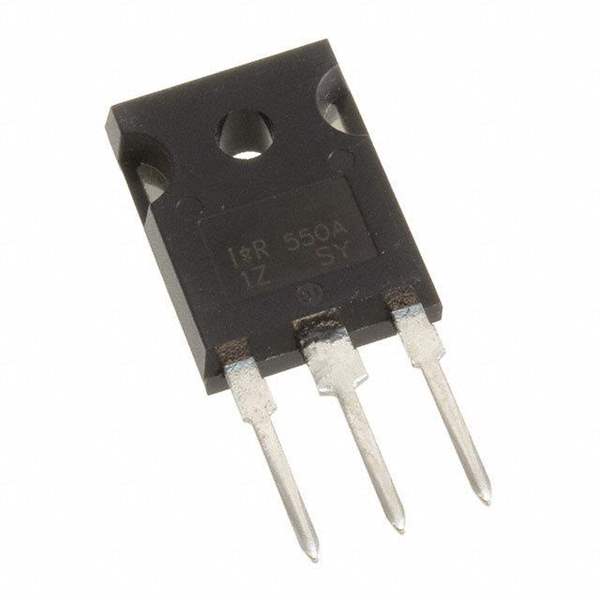

IDW40G120C5BFKSA1 Infineon Technologies

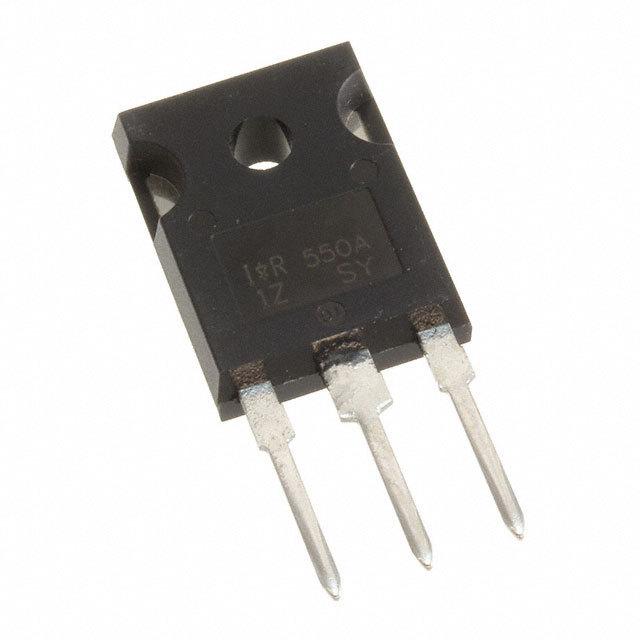

Same model may have multiple batches, images only for reference.

IDW40G120C5BFKSA1

Part No IDW40G120C5BFKSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE GEN PURP 1200V 55A TO247-3
Datasheet
IDW40G120C5BFKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200V
Current - Average Rectified (Io) (per Diode) 55A (DC)
Voltage - Forward (Vf) (Max) @ If 1.65V @ 20A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 166μA @ 1200V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package PG-TO247-3
Win Source Part Number 1005433-IDW40G120C5BFKSA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IDW40G120C5BFKSA1 CAD Model

Description

The Infineon Technologies 435393 is a silicon carbide Schottky diode with a maximum DC reverse voltage of 1200V and a forward voltage of 1.65V @ 20A.

  • Maximum DC Reverse Voltage: 1200V
  • Forward Voltage: 1.65V @ 20A
  • Current Reverse Leakage: 166μA @ 1200V
  • Mounting: Through-Hole
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current: 55A (DC)
  • Junction Temperature Range: -55°C to 175°C
  • Package: PG-TO247-3
  • Recovery Speed: 200mA (Io)
