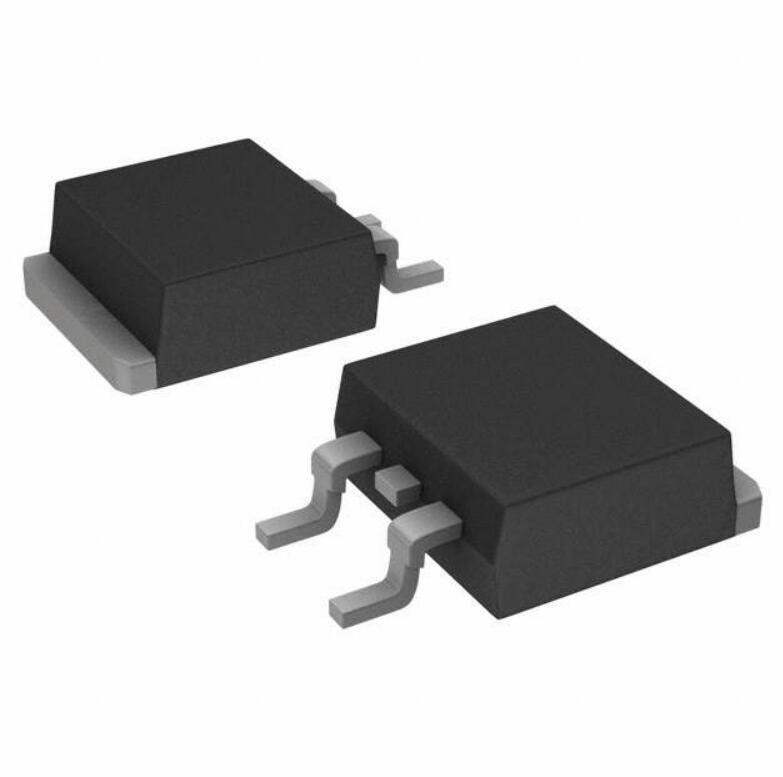

IKB40N65ES5ATMA1Infineon Technologies
Same model may have multiple batches, images only for reference.

IKB40N65ES5ATMA1

Part No IKB40N65ES5ATMA1
Manufacturer Infineon Technologies
Catalog Transistors (BJT) - Single
Description 40A 650V TRENCHSTOP5 MEDIUM SPEE
Datasheet
IKB40N65ES5ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201074-IKB40N65ES5ATMA1
Win Source Part Number Cross
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Series TrenchStop™ 5
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
IGBT Type Trench Field Stop
Current - Collector (Ic) (Max) 79 A
Current - Collector Pulsed (Icm) 160 A
Vce(on) (Max) @ Vge, Ic 1.74V @ 15V, 40A
Ultra Librarian 3D Model Ultra Librarian IKB40N65ES5ATMA1 CAD Model

Description

The TrenchStop™ 5 series from Infineon Technologies offers high-performance single IGBTs for various applications in the field of discrete semiconductor products.

  • Current Collector (Ic): 79A
  • Current Collector Pulsed (Icm): 160A
  • Maximum Vce(on): 1.74V @ 15V and 40A
  • Packaging Options: tape & reel, cut tape, and Digi-Reel™
  • Product Status: active
