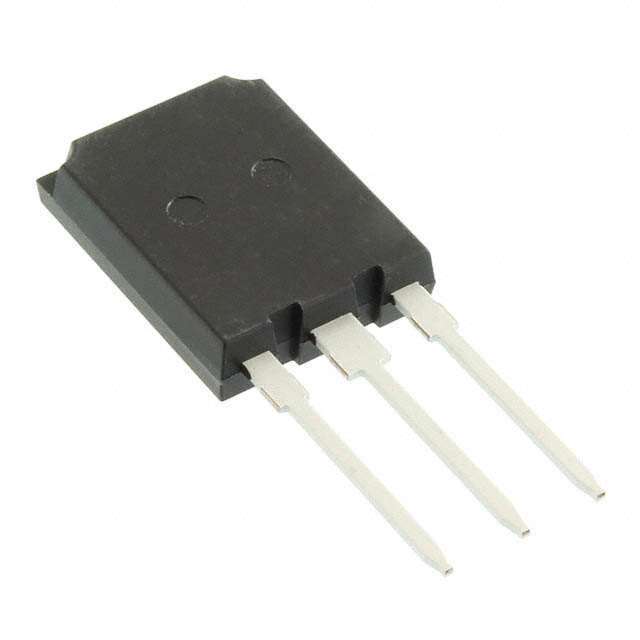

Same model may have multiple batches, images only for reference.
IKQ75N120CS6XKSA1
Same model may have multiple batches, images only for reference.

IKQ75N120CS6XKSA1

Part No IKQ75N120CS6XKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT 1200V 75A TO247-3-46
Datasheet
IKQ75N120CS6XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features IGBT Trench Field Stop 1200 V 150 A 880 W Through Hole PG-TO247-3-46
Manufacturer Infineon Technologies
Series TrenchStop™
Package Tube
Operating Temperature Range -40°C ~ 175°C (TJ)
Mounting Through Hole
Package TO-247-3
Case / Package PG-TO247-3-46
Family Name IKQ75N120
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Quantity per package 30
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 874487-IKQ75N120CS6XKSA1
Ultra Librarian 3D Model Ultra Librarian IKQ75N120CS6XKSA1 CAD Model

Description

The Infineon Technologies IKQ75N120CS6XKSA1 is an IGBT Trench Field Stop that comes in a through hole PG-TO247-3-46 package.

  • Series: TrenchStop™
  • Category: Discrete Semiconductor Products
  • Features: 1200V, 150A, and 880W
  • REACH: Unaffected
  • ECCN: EAR99
  • Package: Tube
  • Quantity per Package: 30
