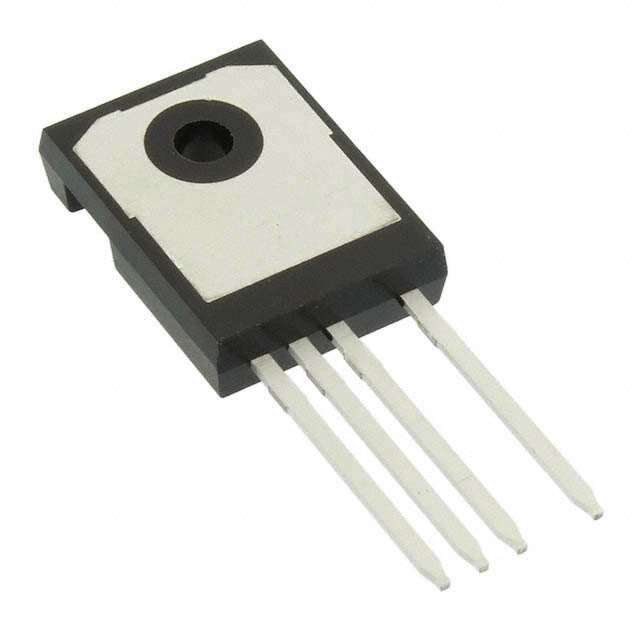

IKZ50N65EH5XKSA1

Name: IKZ50N65EH5XKSA1
Brand: Infineon Technologies
SKU: 1277428
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IKZ50N65EH5XKSA1
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Datasheet	IKZ50N65EH5XKSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr	Infineon Technologies
Series	TrenchStop™ 5
Package	Tube
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	85 A
Current - Collector Pulsed (Icm)	200 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 50A
Power - Max	273 W
Switching Energy	410µJ (on), 190µJ (off)
Input Type	Standard
Gate Charge	109 nC
Td (on/off) @ 25°C	20ns/250ns
Test Condition	400V, 25A, 12Ohm, 15V
Reverse Recovery Time (trr)	53 ns
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-4
Supplier Device Package	PG-TO247-4
Base Product Number	IKZ50N65
Other Names	IKZ50N65EH5,SP001160038
Standard Package	30
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1277428-IKZ50N65EH5XKSA1
Ultra Librarian 3D Model	Ultra Librarian IKZ50N65EH5XKSA1 CAD Model

Alternative Products

Description

The Infineon Technologies IKZ50N65EH5XKSA1 is a TrenchStop™ 5 IGBT transistor in a TO-247-4 package.

Power: 273 W
Collector Current: 85 A
Voltage Breakdown: 650 V
Reverse Recovery Time: 53 ns
IGBT Type: Trench
Input Type: Standard
Mounting: Through-Hole
Switching Energy: 410µJ (on) and 190µJ (off)
Gate Charge: 109 nC
Temperature Range: -40°C to 175°C (TJ)
ECCN: EAR99 compliant
