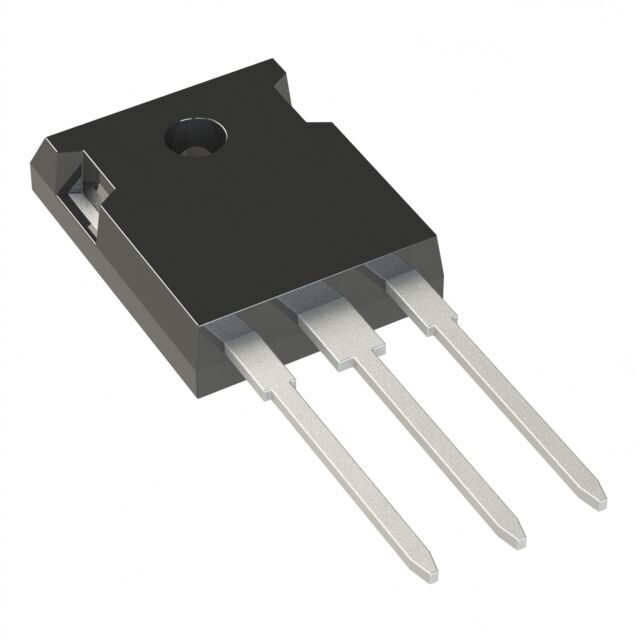

Same model may have multiple batches, images only for reference.
IKW50N65EH5XKSA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IKW50N65EH5XKSA1

Part No IKW50N65EH5XKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT TRENCH 650V 80A TO247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsIGBTsSingle IGBTs
Manufacturer Infineon Technologies
Series TrenchStop?
Packaging Tube
Part Status Active
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Max) 650 V
Current - Collector (Ic) (Max) 80 A
Current - Collector Pulsed (Icm) 200 A
Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 50A
Power - Max 275 W
Switching Energy 1.5mJ (on), 500μJ (off)
Input Type Standard
Gate Charge 120 nC
Td (on/off) @ 25°C 25ns/172ns
Test Condition 400V, 50A, 12Ohm, 15V
Reverse Recovery Time (trr) 81 ns
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package PG-TO247-3
Base Product Number IKW50N65
Ultra Librarian 3D Model Ultra Librarian IKW50N65EH5XKSA1 CAD Model
