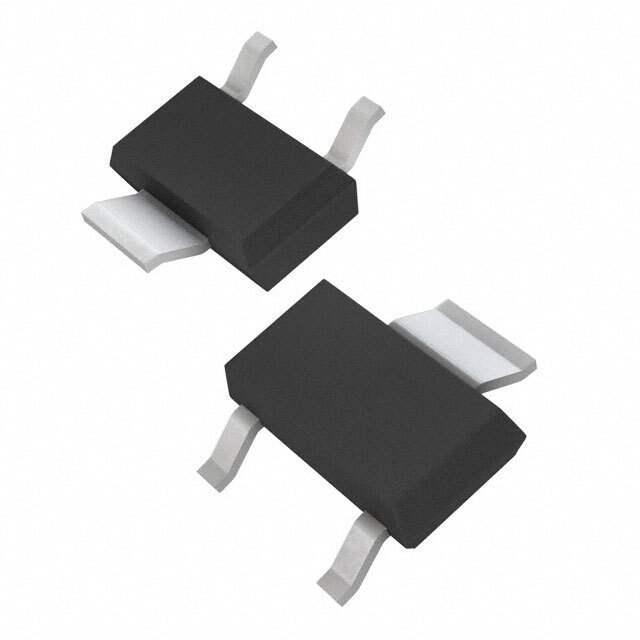

IPN80R750P7ATMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPN80R750P7ATMA1

Part No IPN80R750P7ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 7A SOT223
Datasheet
IPN80R750P7ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307888-IPN80R750P7ATMA1
Category Discrete Semiconductor Products >Transistors >FETs, MOSFETs Single FETs, MOSFETs
Mfr Infineon Technologies
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V
Current - Continuous Drain (Id) @ 25°C 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 750mOhm @ 2.7A, 10V
Ultra Librarian 3D Model Ultra Librarian IPN80R750P7ATMA1 CAD Model

Description

The latest 800V CoolMOS™ P7 series sets a new benchmark in 800Vsuper junction technologies and combines best-in-class performance withstate of the art ease-of-use, resulting from Infineon's over 18 yearspioneering super junction technology innovation.
