Same model may have multiple batches, images only for reference.

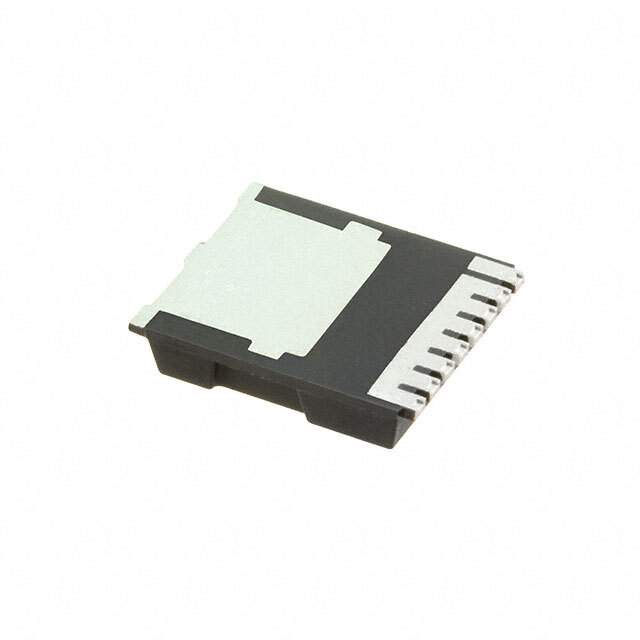

IPT012N06NATMA1 Real Image
Same model may have multiple batches, images only for reference.

IPT012N06NATMA1

Part No IPT012N06NATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 240A 8HSOF  /  N-Channel 60 V 240A (Tc) 214W (Tc) Surface Mount PG-HSOF-8-1
Datasheet
IPT012N06NATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series OptiMOS™
Package Tape & Reel (TR)
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 1.2mOhm @ 100A, 10V
Vgs(th) (Max) @ Id 3.3V @ 143µA
Gate Charge (Qg) (Max) @ Vgs 124 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9750 pF @ 30 V
Power Dissipation (Max) 214W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-HSOF-8-1
Package / Case 8-PowerSFN
Base Product Number IPT012
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP001637074,2156-IPT012N06NATMA1,INFINFIPT012N06NATMA1
Standard Package 2,000
Win Source Part Number 1065359-IPT012N06NATMA1
Ultra Librarian 3D Model Ultra Librarian IPT012N06NATMA1 CAD Model

Description

The Infineon Technologies IPT012N06NATMA1 is an OptiMOS N-channel MOSFET designed for use in discrete semiconductor products.

  • Drain to Source Voltage (Vdss): 60V
  • Current-Continuous Drain (Id) @ 25°C: 240A (Tc)
  • Rds On (Max) @ Id, Vgs: 1.2mOhm @ 100A, 10V
  • Vgs(th) (Max) @ Id: 3.3V @ 143μA
  • Package: 8-PowerSFN
  • Temperature Range: -55°C to 175°C (TJ)
  • Gate Charge (Qg) (Max) @ Vgs: 124 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 9750 pF @ 30 V
