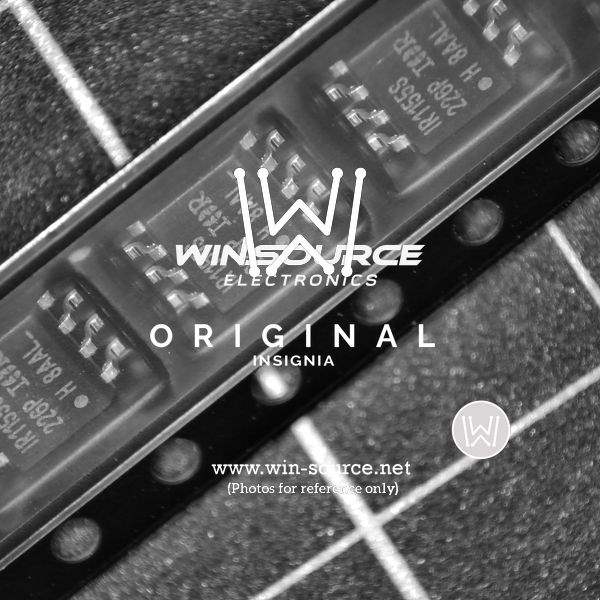

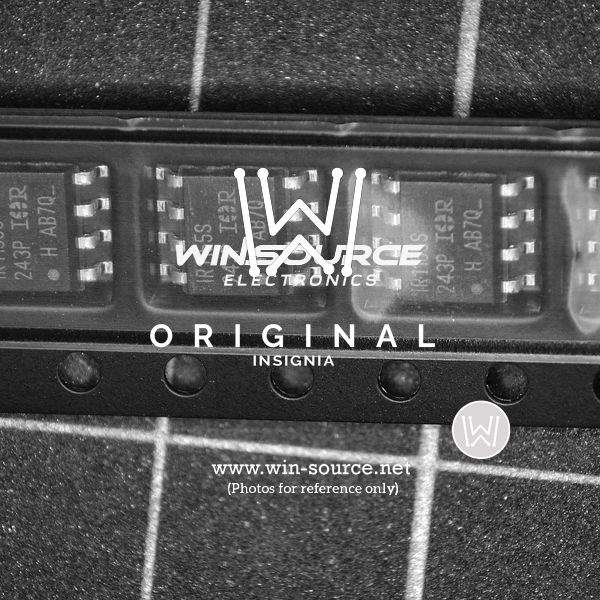

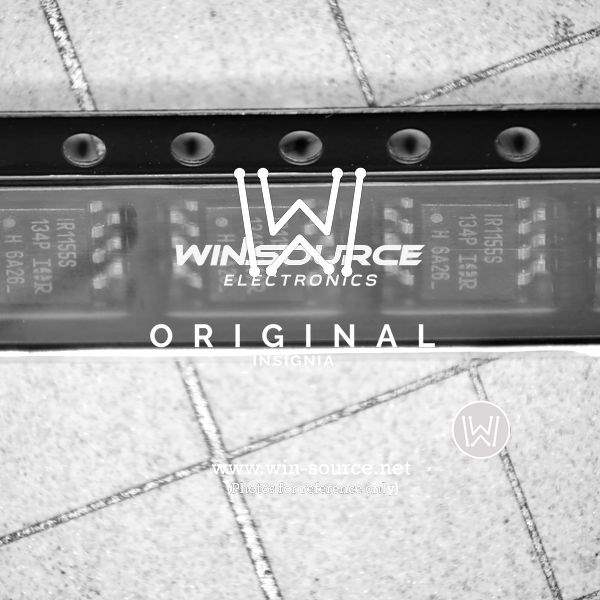

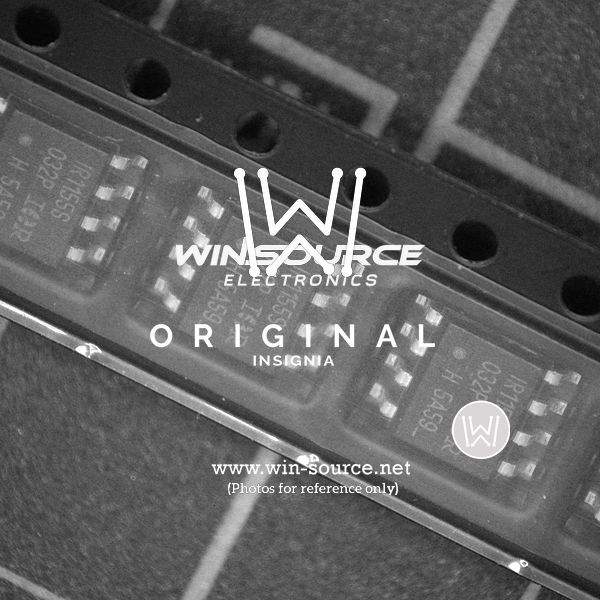

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Mode Continuous Conduction (CCM)
Frequency - Switching Adjustable
Current - Startup 175μA
Supply Voltage - Operating 12 V to 19 V
Temperature Range - Operating -25°C to 125°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 105267-IR1155STRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IR1155STRPBF CAD Model

Description

The Infineon Technologies 105267-IR1155STRPBF is an integrated circuit with a continuous conduction mode (CCM) and an adjustable switching frequency.

  • Mode: Continuous Conduction Mode (CCM)
  • Switching Frequency: Adjustable
  • Current Startup: 175μA
  • Supply Voltage Range: 12V to 19V
  • Package: 8-SOIC
  • Mounting: Surface (SMD/SMT)
