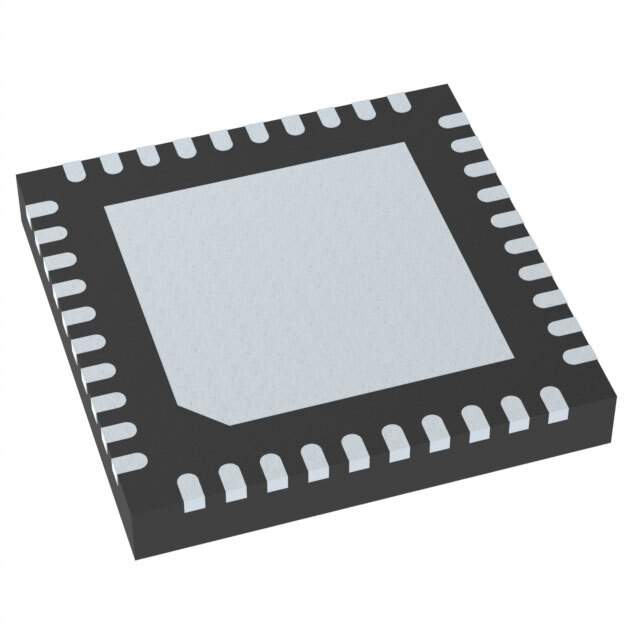

IR3564AMGB01TRP Real Image
Same model may have multiple batches, images only for reference.

IR3564AMGB01TRP

Part No IR3564AMGB01TRP
Manufacturer Infineon Technologies
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG BUCK 40VQFN  /  Buck Regulator Positive Output Step-Down I²C, PMBus, SMBus DC-DC Controller IC PG-VQFN-40-901
Datasheet
IR3564AMGB01TRP Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Controllers
Mfr Infineon Technologies
Package Tape & Reel (TR)
Product Status Obsolete
Output Type PWM
Function Step-Down
Output Configuration Positive
Topology Buck
Number of Outputs 5
Output Phases 4
Supply Voltage - Operating 3.3V
Frequency - Switching 200kHz ~ 2MHz
Synchronous Rectifier No
Clock Sync No
Serial Interfaces I2C, PMBus, SMBus
Control Features Enable, Power Good
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 40-VFQFN Exposed Pad
Supplier Device Package PG-VQFN-40-901
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001525082
Standard Package 3,000
Win Source Part Number 993935-IR3564AMGB01TRP
Ultra Librarian 3D Model Ultra Librarian IR3564AMGB01TRP CAD Model

Description

The Infineon Technologies IR3564AMGB01TRP is a DC-DC switching controller designed for use in a variety of applications.

  • Frequency Range: 200 kHz to 2 MHz
  • Supply Voltage: 3.3 V
  • Outputs: Up to 5 Positive
  • Duty Cycle: Up to 100%
  • Package: 40-VFQFN exposed pad
  • RoHS Compliant: Yes
  • Control Features: Enable and Power Good
  • Control Interface: I2C, PMBus, or SMBus
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Infineon Technologies
