The IR3725MTRPBF is a synchronous buck regulator IC from Infineon Technologies. It is designed for high-efficiency power conversion in point-of-load applications. The device integrates control circuitry and MOSFETs, simplifying the design process and minimizing board space.

Applications

• Point-of-Load (POL) Converters
• Server and Networking Equipment
• FPGA and Microprocessor Power Supplies
• Embedded Systems
• Industrial Automation

Features

• Integrated Synchronous MOSFETs
• High Efficiency
• Adjustable Output Voltage
• Overcurrent Protection (OCP)
• Overtemperature Protection (OTP)
• Input Undervoltage Lockout (UVLO)
• Enable Input
• Power Good Output

Benefits

• Simplified Design
• Reduced Component Count
• High Power Density
• Improved System Reliability
• Flexibility in Output Voltage Selection

Specifications

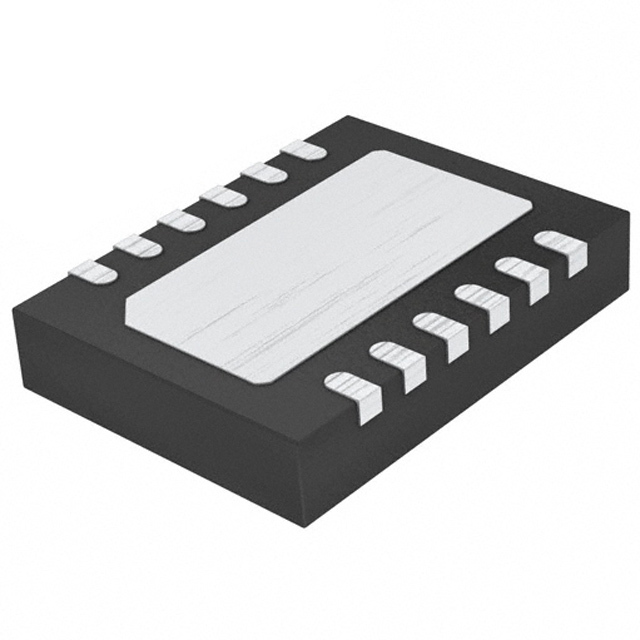

The IR3725MTRPBF typically operates from an input voltage of 4.5V to 16V and provides an adjustable output voltage, typically down to 0.6V. It is designed to deliver a continuous output current of up to 25A (depending on the design and thermal conditions). The switching frequency is adjustable, allowing designers to optimize between efficiency and transient response. The integrated MOSFETs offer low on-resistance, minimizing conduction losses. Protection features such as OCP, OTP, and UVLO ensure reliable operation and prevent damage to the regulator and the load. The package is typically a QFN type, allowing for efficient heat dissipation and a small footprint. The device has a Power Good signal to indicate when the output voltage is within regulation limits. The adjustable switching frequency is usually in the range of 200 kHz to 1 MHz.

The integration of MOSFETs in the IR3725MTRPBF significantly simplifies the design process and reduces the overall component count. The high efficiency minimizes power dissipation, reducing the need for external heat sinking. The adjustable output voltage allows for flexible system design and easy adaptation to different load requirements. The comprehensive protection features enhance the reliability of the power supply and the overall system. The small QFN package allows for high power density, enabling compact designs.
