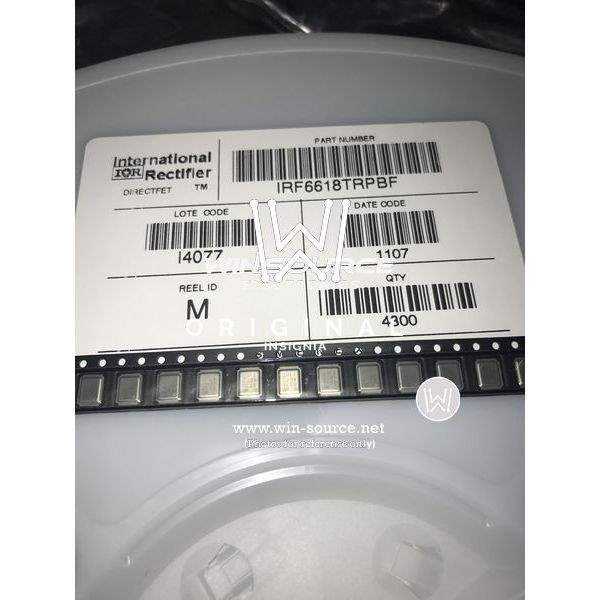

IRF6618TRPBF Infineon Technologies IRF6618TRPBF label picture 2 IRF6618TRPBF real image
Same model may have multiple batches, images only for reference.
IRF6618TRPBF Infineon Technologies IRF6618TRPBF label picture 2 IRF6618TRPBF real image
IRF6618TRPBF Infineon Technologies IRF6618TRPBF label picture 2 IRF6618TRPBF real image
Same model may have multiple batches, images only for reference.

IRF6618TRPBF

Part No IRF6618TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH Si 30V 30A 7-Pin Direct-FET MT T/R / MOSFET N-CH 30V 30A DIRECTFET
Datasheet
IRF6618TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 30A (Ta), 170A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 250μA
Max Gate Charge 65nC @ 4.5V
Max Input Capacitance 5640pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.8W (Ta), 89W (Tc)
Maximum Rds On at Id,Vgs 2.2 mOhm @ 30A, 10V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET MT
Dimension DirectFET Isometric MT
Win Source Part Number 069314-IRF6618TRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name IRF6618
Introduction Date July 13, 2006
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IRF6618TRPBF CAD Model

Description

The Infineon Technologies IRF6618TRPBF is a N-Channel MOSFET with a drain-source breakdown voltage of 30V and a continuous drain current of 30A (Ta) and 170A (Tc) @ 25°C.

  • Maximum Rds On: 2.2 mOhm @ 30A and 10V
  • Maximum Gate-Source Voltage: ±20V
  • Gate-Source Threshold Voltage: 2.35V @ 250μA
  • Maximum Gate Charge: 65nC @ 4.5V
  • Package: DIRECTFET MT case
  • Power Dissipation: 2.8W (Ta) and 89W (Tc)
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Supply and Demand Status: Sufficient
  • Estimated EOL Date: 2027
