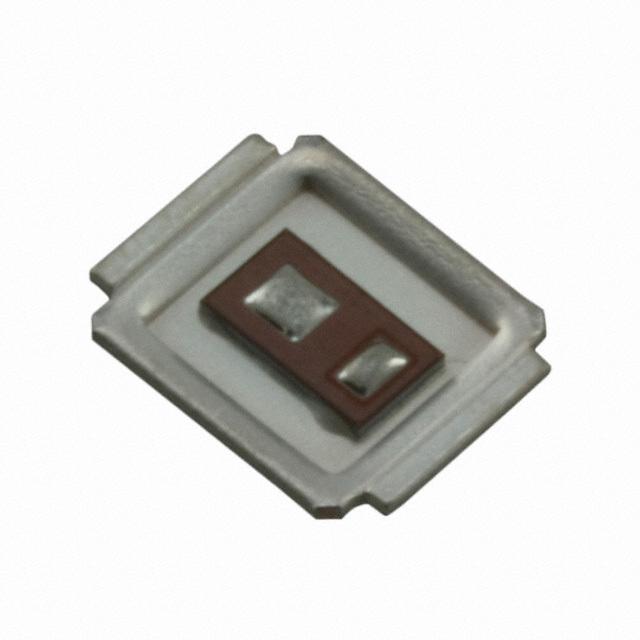

Same model may have multiple batches, images only for reference.
IRF6622TR1PBF Infineon Technologies
Same model may have multiple batches, images only for reference.

IRF6622TR1PBF

Part No IRF6622TR1PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 15A DIRECTFET
Datasheet
IRF6622TR1PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 15A (Ta), 59A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 25μA
Max Gate Charge 17nC @ 4.5V
Max Input Capacitance 1450pF @ 13V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.2W (Ta), 34W (Tc)
Maximum Rds On at Id,Vgs 6.3 mOhm @ 15A, 10V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET SQ
Dimension DirectFET Isometric SQ
Win Source Part Number 131891-IRF6622TR1PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRF6622TR1PBF CAD Model

Description

The Infineon Technologies MOSFET with the Win Source Part Number 131891-IRF6622TR1PBF is a N-Channel polarity power transistor.

  • Power Dissipation: 2.2W (Ta), 34W (Tc)
  • Continuous Drain Current: 15A (Ta), 59A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.35V @ 25μA
  • Maximum Rds on at Id,Vgs: 6.3 mOhm @ 15A, 10V
  • Package: DirectFET SQ
  • Mounting: SMD (SMT) technology
  • Drain-Source Breakdown Voltage: 25V
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Gate Charge: 17nC @ 4.5V
  • Maximum Input Capacitance: 1450pF @ 13V
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Lifecycle Status: Obsolete (EOL)
  • Usage: Commonly used in power management applications.
