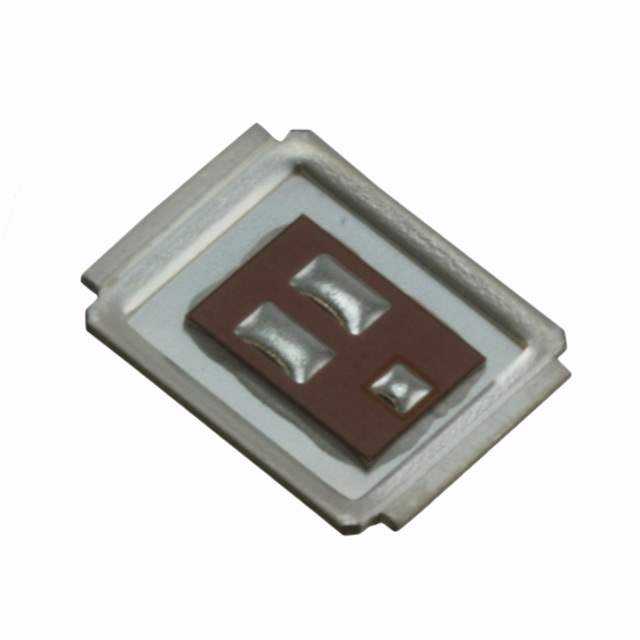

Same model may have multiple batches, images only for reference.

IRF8306MTRPBF

Name: IRF8306MTRPBF
Brand: Infineon Technologies
SKU: 160112
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRF8306MTRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 23A DIRECTFET
Datasheet	IRF8306MTRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	23A (Ta), 140A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.35V @ 100μA
Max Gate Charge	38nC @ 4.5V
Max Input Capacitance	4110pF @ 15V
Maximum Gate-Source Voltage	±20V
FET Feature	Schottky Diode (Body)
Power Dissipation (Max)	2.1W (Ta), 75W (Tc)
Maximum Rds On at Id,Vgs	2.5 mOhm @ 23A, 10V
Temperature Range - Operating	-40°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DIRECTFET MX
Dimension	DirectFET Isometric MX
Win Source Part Number	205320-IRF8306MTRPBF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRF8306MTRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRF8306MTRPBF is a MOSFET with a Schottky Diode (Body) FET feature.

Polarity: N-Channel
Power Dissipation: 2.1W (Ta), 75W (Tc)
Maximum Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 23A (Ta), 140A (Tc)
Gate-Source Threshold Voltage: 2.35V @ 100μA
Maximum Gate Charge: 38nC @ 4.5V
Package: DIRECTFET MX
Operating Temperature Range: -40°C to 150°C (TJ)
Supply and Demand Status: Balanced
