Same model may have multiple batches, images only for reference.

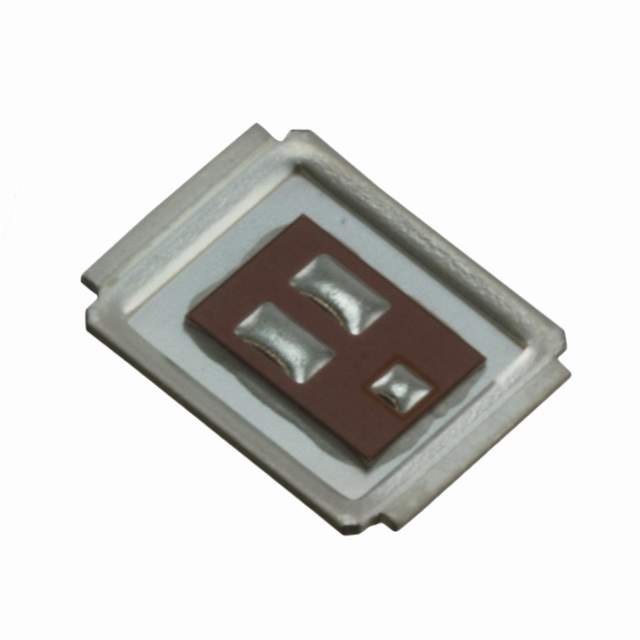

IRF8308MTR1PBF Real Image
Same model may have multiple batches, images only for reference.

IRF8308MTR1PBF

Part No IRF8308MTR1PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 27A DIRECTFET  /  N-Channel 30 V 27A (Ta), 150A (Tc) 2.8W (Ta), 89W (Tc) Surface Mount DIRECTFET™ MX
Datasheet
IRF8308MTR1PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series HEXFET®
Package Tape & Reel
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 27A (Ta), 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 2.5mOhm @ 27A, 10V
Vgs(th) (Max) @ Id 2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 42 nC @ 4.5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4404 pF @ 15 V
Power Dissipation (Max) 2.8W (Ta), 89W (Tc)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package DIRECTFET™ MX
Package / Case DirectFET™ Isometric MX
Base Product Number IRF8308
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IRF8308MTR1PBF-ND,SP001563880,IRF8308MTR1PBFTR,IRF8308MTR1PBFDKR,IRF8308MTR1PBFCT
Standard Package 1,000
Win Source Part Number 1065527-IRF8308MTR1PBF
Ultra Librarian 3D Model Ultra Librarian IRF8308MTR1PBF CAD Model

Description

The IRF8308MTR1PBF is an N-channel MOSFET transistor manufactured by Infineon Technologies.

  • Win Source Part Number: 1065527-IRF8308MTR1PBF
  • Series: HEXFET
  • Maximum Voltage Rating: ±20V
  • Continuous Drain Current: 27A
  • Popularity: Low
  • Status: Obsolete
