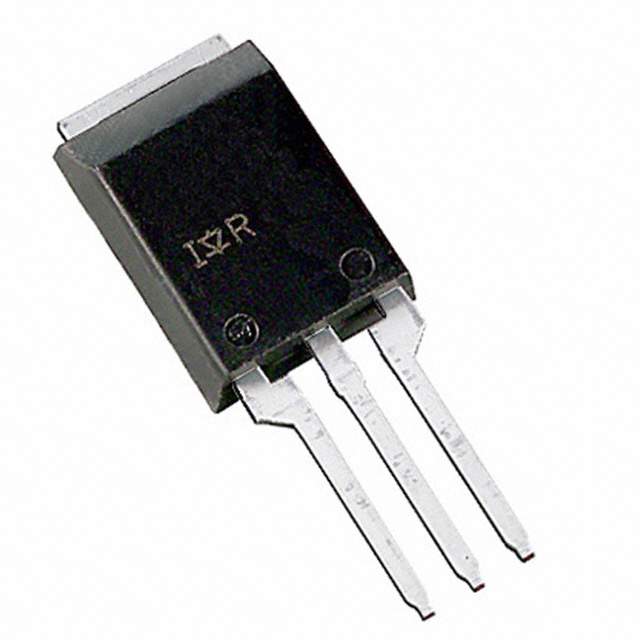

Same model may have multiple batches, images only for reference.

IRFBA1405P

Name: IRFBA1405P
Brand: Infineon Technologies
SKU: 604831
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRFBA1405P
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	Power MOSFET(Vdss=55V, Rds(on)=5.0mohm, Id=174A⑥) \| MOSFET N-CH 55V 174A SUPER-220
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	55V
Id - Continuous Drain Current	174A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	5mOhm at 101A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	260nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	5480pF at 25V
Power Dissipation (Maximum)	330W
Temperature Range - Operating	-40°C ~ 175°C
Mounting Style	Through Hole
Supplier Device Package	SUPER-220 (TO-273AA)
Manufacturer Package	Super-220-3 (Straight Leads)
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Win Source Part Number	1187519-IRFBA1405P
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRFBA1405P CAD Model

Alternative Products

Description

The IRFBA1405P from Infineon Technologies is an N-Channel MOSFET transistor that comes in a tube package with a through-hole mounting style.

Operating Temperature Range: -40°C to 175°C
Supply and Demand Status: Limited
