Same model may have multiple batches, images only for reference.

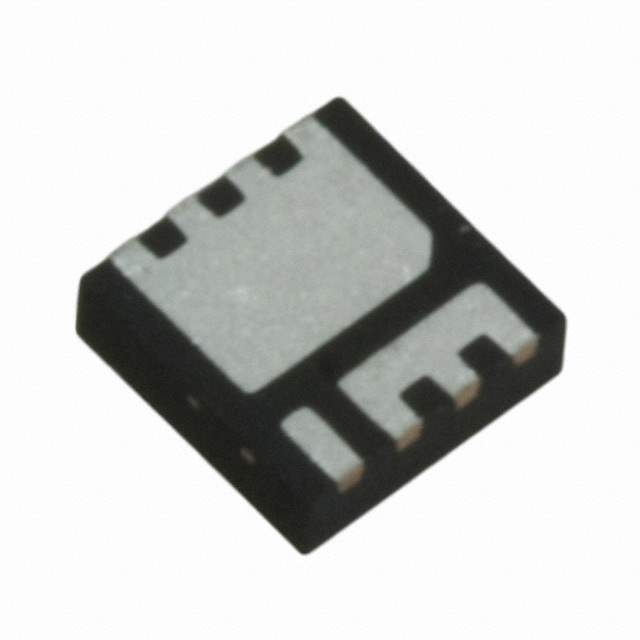

IRFH3702TR2PBF Real Image
Same model may have multiple batches, images only for reference.

IRFH3702TR2PBF

Part No IRFH3702TR2PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 16A 8PQFN
Datasheet
IRFH3702TR2PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Cut Reel
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 16A (Ta), 42A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 25μA
Max Gate Charge 14nC @ 4.5V
Max Input Capacitance 1510pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.8W (Ta)
Maximum Rds On at Id,Vgs 7.1 mOhm @ 16A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PQFN (3x3)
Dimension 8-PowerVDFN
Win Source Part Number 1046854-IRFH3702TR2PBF
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Computers & Computer Peripherals, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian IRFH3702TR2PBF CAD Model

Description

The Infineon Technologies IRFH3702TR2PBF is a N-channel MOSFET transistor with a drain-source breakdown voltage of 30V and a continuous drain current of 16A at 25°C, 42A at Tc. Infineon Technologies

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 16A @ 25°C, 42A @ Tc
  • Maximum Power Dissipation: 2.8W
  • Maximum Rds On @ Id,Vgs: 7.1 mOhm @ 16A, 10V
  • Gate-Source Threshold Voltage: 2.35V @ 25μA
  • Maximum Gate Charge: 14nC @ 4.5V
  • Package: 8-PQFN (3x3)
  • Applications: Power management, computers, computer peripherals, communications and networking
  • Supply and Demand: Limited
