Same model may have multiple batches, images only for reference.

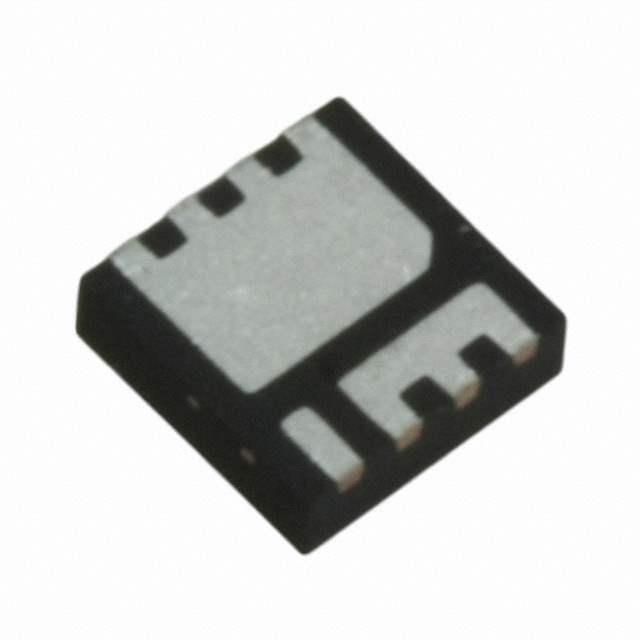

IRFH3702TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH3702TRPBF

Part No IRFH3702TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 16A 8PQFN
Datasheet
IRFH3702TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 16A (Ta), 42A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 25μA
Max Gate Charge 14nC @ 4.5V
Max Input Capacitance 1510pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.8W (Ta)
Maximum Rds On at Id,Vgs 7.1 mOhm @ 16A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PQFN (3x3)
Dimension 8-PowerVDFN
Win Source Part Number 092028-IRFH3702TRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFH3702TRPBF CAD Model

Description

The Infineon Technologies IRFH3702TRPBF is a high-performance N-channel MOSFET transistor that is designed for a variety of applications.

  • Case/Package: 8-PQFN (3x3)
  • Mounting: SMD (SMT)
  • Supply and Demand Status: Balance
