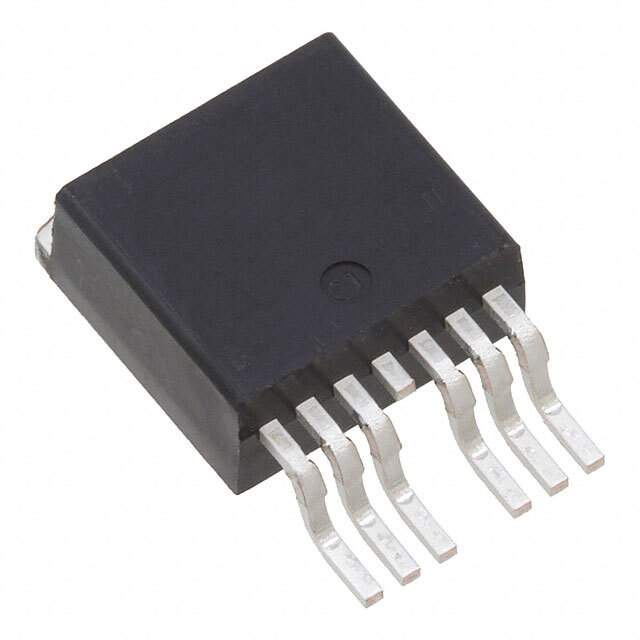

Same model may have multiple batches, images only for reference.

IRFS7534TRL7PP

Name: IRFS7534TRL7PP
Brand: Infineon Technologies
SKU: 963743
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRFS7534TRL7PP
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N CH 60V 240A D2PAK / N-Channel 60 V 240A (Tc) 290W (Tc) Surface Mount D2PAK (7-Lead)
Datasheet	IRFS7534TRL7PP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	HEXFET®, StrongIRFET™
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.95mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	300 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9990 pF @ 25 V
Power Dissipation (Max)	290W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	D2PAK (7-Lead)
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
Base Product Number	IRFS7534
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	448-IRFS7534TRL7PPDKR,IRFS7534TRL7PPDKR,IRFS7534TRL7PPCT,IRFS7534TRL7PPTR,IRFS7534TRL7PPCT-ND,IRFS7534TRL7PPDKR-ND,448-IRFS7534TRL7PPTR,IRFS7534TRL7PP-ND,IRFS7534TRL7PPTR-ND,SP001573434,448-IRFS7534TRL7PPCT
Standard Package	800
Win Source Part Number	963743-IRFS7534TRL7PP
Ultra Librarian 3D Model	Ultra Librarian IRFS7534TRL7PP CAD Model

Alternative Products

Description

The IRFS7534TRL7PP from Infineon is a transistor-FET-MOSFET-single with 7 leads and TO-263-7, D²Pak packaging.

Mounting Type: Surface Mount
RoHS Compliance: Yes
Drain to Source Voltage (Vdss): 60 V
Current-Continuous Drain (Id) @ 25°C: 240A (Tc)
Rds On (Max) @ Id, Vgs: 1.95mOhm @ 100A, 10V
Voltage Range: ±20V
Gate Charge (Qg) (Max) @ Vgs: 300 nC @ 10 V
Series: HEXFET®, StrongIRFET™
Popularity: Low
Supply and Demand Status: Shortage
