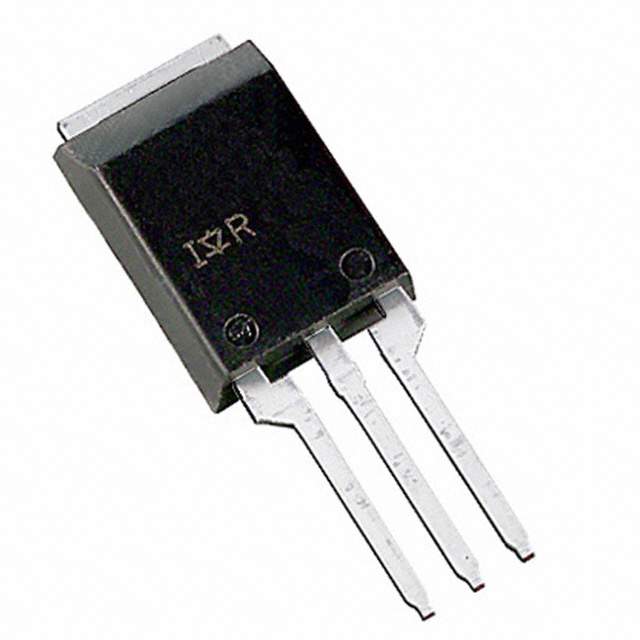

IRLBA1304 Real Image1 IRLBA1304 Real Image2
Same model may have multiple batches, images only for reference.
IRLBA1304 Real Image1 IRLBA1304 Real Image2
IRLBA1304 Real Image1 IRLBA1304 Real Image2
Same model may have multiple batches, images only for reference.

IRLBA1304

Part No IRLBA1304
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 185A SUPER-220 / N-Channel 40 V 185A (Tc) 300W (Tc) Through Hole SUPER-220™ (TO-273AA)
Datasheet
IRLBA1304 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr Infineon Technologies
Series HEXFET®
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 185A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 4mOhm @ 110A, 10V
Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 140 nC @ 4.5 V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 7660 pF @ 25 V
FET Feature -
Power Dissipation (Max) 300W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package SUPER-220™ (TO-273AA)
Package / Case TO-273AA
Base Product Number IRLBA130
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 50 pcs
Win Source Part Number 1382330-IRLBA1304
Ultra Librarian 3D Model Ultra Librarian IRLBA1304 CAD Model

Description

The IRLBA1304 is a N-Channel MOSFET transistor from Infineon Technologies. It belongs to the HEXFET series and is designed for use in discrete semiconductor products, specifically in transistors and FETs.

  • Package: TO-273AA (SUPER-220™)
  • Drain to Source Voltage (Vdss): 40V
  • Continuous Drain Current (Id) @ 25°C: 185A
  • On-Resistance (Rds On): 4mOhm @ 110A and 10V
  • Gate Charge (Qg): 140nC @ 4.5V
  • Input Capacitance (Ciss): 7660pF @ 25V
  • Operating Temperature: -55°C to 175°C
  • Power Dissipation: 300W
  • Product Status: Obsolete
  • RoHS Compliant: No
