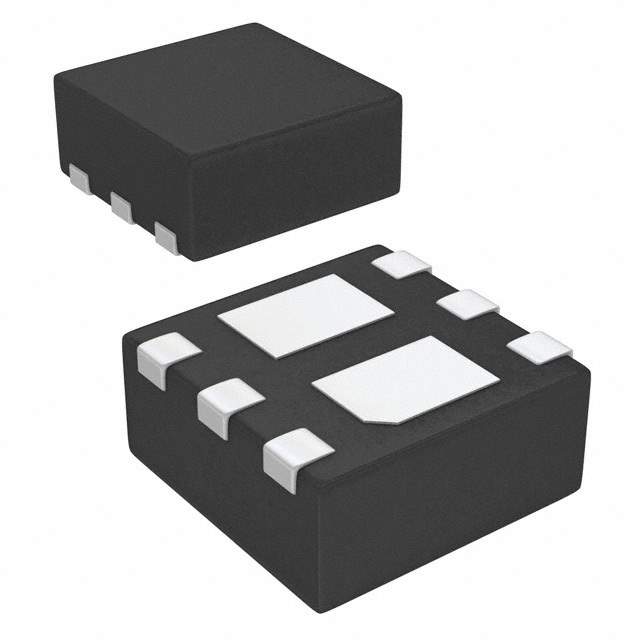

Same model may have multiple batches, images only for reference.

IRLHS6376TR2PBF

Name: IRLHS6376TR2PBF
Brand: Infineon Technologies
SKU: 605850
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRLHS6376TR2PBF
Manufacturer	Infineon Technologies
Catalog	FETs - Arrays
Description	HEXFET Power MOSFET \| MOSFET 2N-CH 30V 3.6A PQFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel
Status	Obsolete
Transistor Polarity	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Vds - Drain-Source Breakdown Voltage	30V
Id - Continuous Drain Current	3.6A
Rds On (Maximum) at Id, Vgs	63mOhm at 3.4A, 4.5V
Gate Source Voltage(th) (Maximum) at Id	1.1V at 10μA
Gate Charge (Qg) (Maximum) at Vgs	2.8nC at 4.5V
Input Capacitance (Ciss) (Maximum) at Vds	270pF at 25V
Maximum Power	1.5W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Manufacturer Package	6-VDFN Exposed Pad
Supplier Device Package	6-PQFN (2x2)
Family Part Number	IRLHS6376
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1188538-IRLHS6376TR2PBF
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRLHS6376TR2PBF CAD Model

Alternative Products

Description

The IRLHS6376TR2PBF is a logic level gate FET transistor manufactured by Infineon Technologies.

Mounting Style: SMD
Packaging: reel
Supply and Demand Status: limited
Manufacturer Pack Quantity: 1
Maximum Power: 1.5W
Vds - Drain-Source Breakdown Voltage: 30V
Id - Continuous Drain Current: 3.6A
Rds On (Maximum) @ Id, Vgs: 63mOhm @ 3.4A, 4.5V
Gate Source Voltage(th) (Maximum) @ Id: 1.1V @ 10μA
Gate Charge (Qg) (Maximum) @ Vgs: 2.8nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds: 270pF @ 25V
