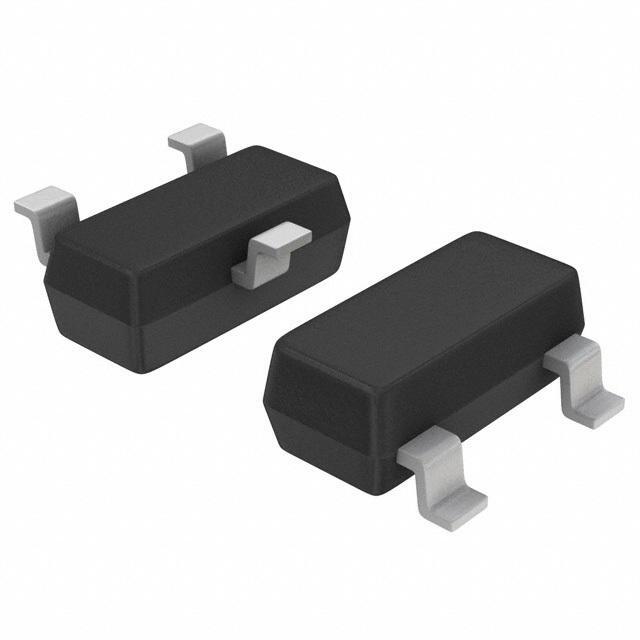

IRLML2402

Name: IRLML2402
Brand: Infineon Technologies
SKU: 161501
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRLML2402
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 20V 1.2A SOT-23
Datasheet	IRLML2402 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Gate-Source Threshold Voltage	700mV @ 250μA
Max Gate Charge	3.9nC @ 4.5V
Max Input Capacitance	110pF @ 15V
Maximum Gate-Source Voltage	±12V
Power Dissipation (Max)	540mW (Ta)
Maximum Rds On at Id,Vgs	250 mOhm @ 930mA, 4.5V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	Micro3/SOT-23
Dimension	TO-236-3, SC-59, SOT-23-3
Win Source Part Number	095204-IRLML2402
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Power Management
Ultra Librarian 3D Model	Ultra Librarian IRLML2402 CAD Model

Alternative Products

Description

The Infineon Technologies IRLML2402 is a MOSFET transistor that is used in discrete semiconductor products.

Package: Surface Mount
Temperature Range: -55°C to 150°C
Drain-Source Breakdown Voltage: 20V
Continuous Drain Current: 1.2A @ 25°C
Gate-Source Threshold Voltage: 700mV @ 250μA
Maximum Gate Charge: 3.9nC @ 4.5V
Maximum Input Capacitance: 110pF @ 15V
Maximum Gate-Source Voltage: ±12V
Supply and Demand Status: Balanced
