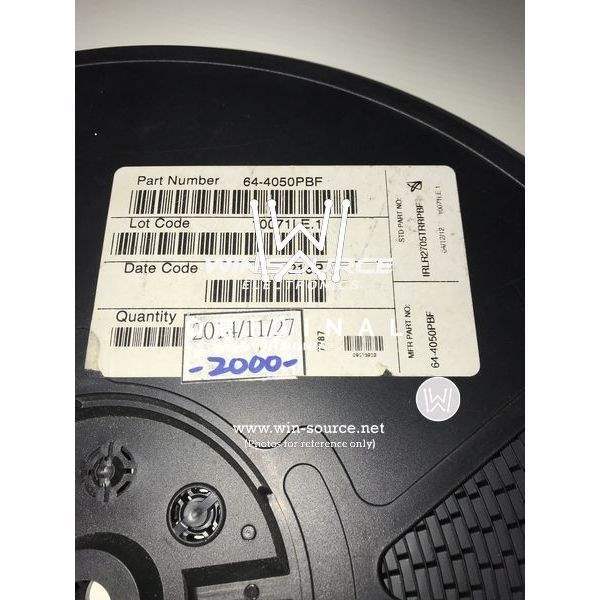

IRLR2705TRL Infineon Technologies IRLR2705TRL Real Image IRLR2705TRL label picture 2 IRLR2705TRL real image
Same model may have multiple batches, images only for reference.
IRLR2705TRL Infineon Technologies IRLR2705TRL Real Image IRLR2705TRL label picture 2 IRLR2705TRL real image
IRLR2705TRL Infineon Technologies IRLR2705TRL Real Image IRLR2705TRL label picture 2 IRLR2705TRL real image
Same model may have multiple batches, images only for reference.

IRLR2705TRL

Part No IRLR2705TRL
Manufacturer Infineon Technologies
Catalog FETs - Single
Description Trans MOSFET N-CH Si 55V 28A 3-Pin(2+Tab) DPAK T/R / Logic-Level Gate Drive | MOSFET N-CH 55V 28A DPAK
Datasheet
IRLR2705TRL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tape and Reel
Status Obsolete
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 55V
Id - Continuous Drain Current 28A
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V
Rds On (Maximum) at Id, Vgs 40mOhm at 17A, 10V
Gate Source Voltage(th) (Maximum) at Id 2V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 25nC at 5V
Gate Source Voltage (Maximum) ±16V
Input Capacitance (Ciss) (Maximum) at Vds 880pF at 25V
Power Dissipation (Maximum) 68W
Temperature Range - Operating -55°C ~ 175°C
Mounting Style SMD
Supplier Device Package D-Pak
Manufacturer Package TO-252-3, DPak (2 Leads + Tab), SC-63
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1188618-IRLR2705TRL
Manufacturer Homepage www.irf.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name IRLR2705
Introduction Date June 24, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRLR2705TRL CAD Model

Description

The Infineon Technologies IRLR2705TRL is a MOSFET transistor that belongs to the IRLR2705 family.

  • Popularity: High
  • Supply and Demand Status: Sufficient
  • Alternative Parts: MTD20N06HDL1, BUK7230-55A, STD19NE06L, and MTD20N06HDLT4
  • Maximum Power Dissipation: 68W
  • Maximum Vds: 55V
  • Maximum Id: 28A
  • Maximum Rds On: 40mOhm @ 17A, 10V
