ITS5215LCUMA1 Infineon Technologies

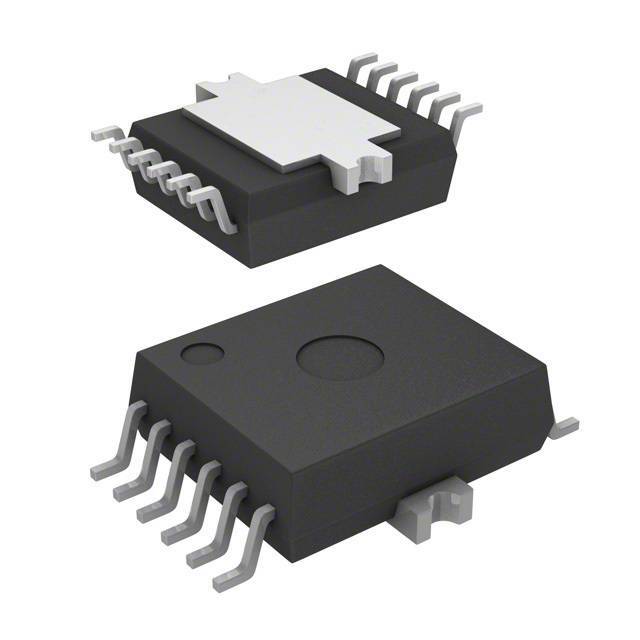

Same model may have multiple batches, images only for reference.

ITS5215LCUMA1

Part No ITS5215LCUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC DUAL HIGH SIDE SWITCH DSO12 / Current Limit SW 2-IN 2-OUT -10V to 16V 9.5A 12-Pin DSO T/R
Datasheet
ITS5215LCUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series PROFET
Packaging Reel package
Switch Type General
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 5.5 V ~ 40 V
Current - Output (Maximum) 3.7A
Rds On (Typ) 70 mOhm
Features Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature Range -30°C ~ 85°C (TA)
Package 12-BSOP (0.295", 7.50mm Width) Exposed Pad
Manufacturer Package PG-DSO-12-9
Win Source Part Number 777592-ITS5215LCUMA1
Popularity Medium
Supply and Demand Status Limited
Family Name ITS5215
Introduction Date March 27, 2006
ECCN EAR99
Country of Origin Indonesia
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian ITS5215LCUMA1 CAD Model

Description

The Infineon Technologies PROFET ITS5215LCUMA1 is an N-channel high-side smart switch with two outputs.

  • Switch Type: General-purpose
  • Applications: Automotive
  • Features: Fixed current limit, Open load detect, Over-temperature protection, Over-voltage protection
  • Voltage Range: 5.5V to 40V
  • Output Configuration: High-side
  • Typical Rds On: 70 mOhm
  • Maximum Current Output: 3.7A
  • Package: 12-BSOP with exposed pad
  • Compliance: Halogen-free directive
  • Estimated EOL Date: 2029
