The PEF20450HV1.3 is an Integrated Voice and Data Access Device (IVDAD) chip from Infineon Technologies. It's primarily designed for use in Voice over IP (VoIP) and integrated access devices, offering a complete solution for connecting analog voice lines to digital networks. This device integrates multiple functions into a single chip, simplifying system design and reducing the bill of materials.

Applications

• VoIP gateways: Connects analog phones to IP networks.
• Integrated access devices (IADs): Provides voice and data services over a single connection.
• Analog telephone adapters (ATAs): Allows analog phones to be used with VoIP services.
• Small business phone systems: Integrates voice and data services for small businesses.
• Residential gateways: Provides voice and data connectivity for homes.

Features

• Two-channel SLIC/SLAC: Provides interface for two analog phone lines.
• Integrated codec: Converts analog voice signals to digital data.
• G.711, G.729 codecs: Supports industry-standard voice codecs.
• Line testing capabilities: Allows testing and diagnostics of analog phone lines.
• Power management features: Reduces power consumption.

Benefits

• Simplified system design: Integrates multiple functions into a single chip.
• Reduced bill of materials: Lowers the cost of system implementation.
• Improved voice quality: Supports high-quality voice codecs.
• Enhanced system reliability: Provides line testing and diagnostics capabilities.
• Lower power consumption: Reduces energy costs.

Additional Details

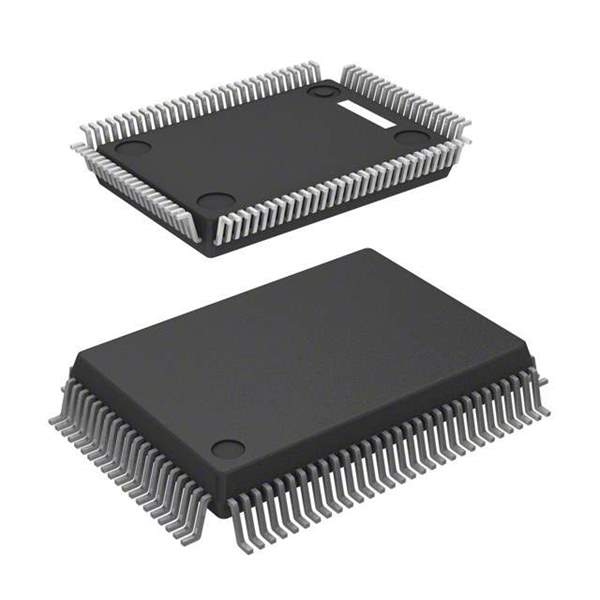

The PEF20450HV1.3 typically comes in a surface-mount package, suitable for high-density board designs. It supports various signaling protocols, including DTMF and Caller ID. The integrated codec provides excellent voice quality with minimal distortion. The line testing capabilities allow technicians to diagnose and troubleshoot problems with analog phone lines. It often requires external components for line protection and impedance matching. Detailed specifications, including voltage and current requirements, are available in the Infineon datasheet. It is used in devices required to convert analog voice signals to digital format for transmission over IP networks, and vice versa. The device supports various power saving modes to minimize energy consumption during idle periods.
