Same model may have multiple batches, images only for reference.

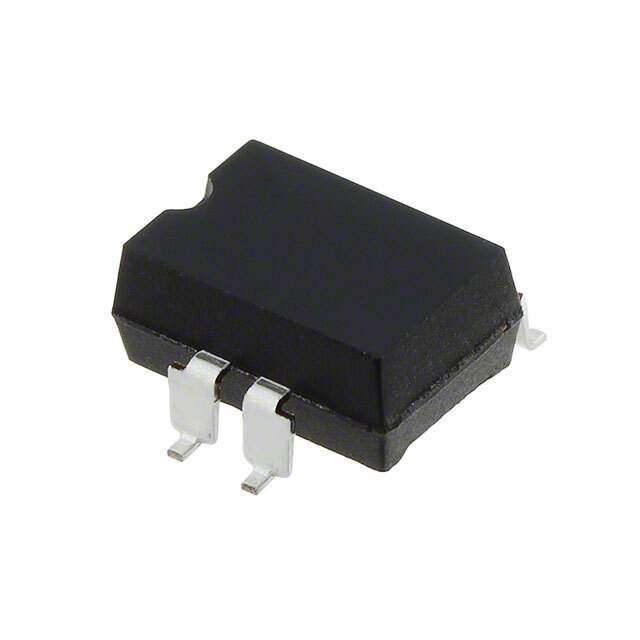

PVI5080NSPBF Real Image
Same model may have multiple batches, images only for reference.

PVI5080NSPBF

Part No PVI5080NSPBF
Manufacturer Infineon Technologies
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 4KV PHOTOVOLTAIC 8-SMT
Datasheet
PVI5080NSPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 4000Vrms
Switching Turn-On and Turn-Off Time 300μs, 220μs (Max)
Input Type DC
Output Type Photovoltaic
Maximum Output Voltage 5V
Channel Output Current 8μA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SMD
Win Source Part Number 142568-PVI5080NSPBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian PVI5080NSPBF CAD Model

Description

The Infineon Technologies 142568-PVI5080NSPBF is an active electronic component with medium popularity and limited supply and demand status.

  • Type: isolator
  • Isolation Voltage: 4000Vrms
  • Packaging: 8-SMD
  • Output Voltage: 5V maximum
  • Channel Output Current: 8μA
  • Reliable: for electronic projects with isolation requirements
