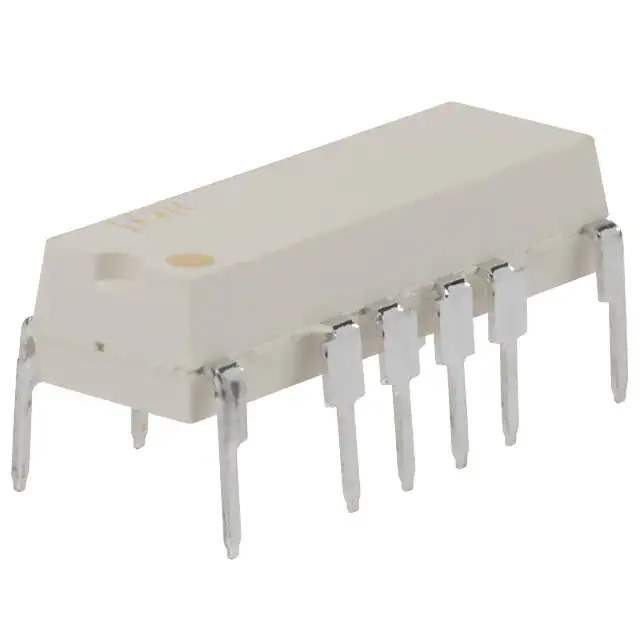

PVR2300N Real Image
Same model may have multiple batches, images only for reference.

PVR2300N

Part No PVR2300N
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY DPST-NO 165MA 0-200V / Solid State DPST-NO (2 Form A) x 2 16-DIP (0.300", 7.62mm), 10 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVR, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit DPST-NO (2 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 200 V
Load Current 165 mA
On-State Resistance (Max) 24 Ohms
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 10 Leads
Supplier Device Package 16-DIP
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658210-PVR2300N
Ultra Librarian 3D Model Ultra Librarian PVR2300N CAD Model

Description

The PVR2300N is a solid state relay designed for high voltage applications.

  • Circuit: DPST-NO (2 Form A) x 2
  • Input Voltage: 1.2VDC
  • Load Voltage: 0V to 200V
  • On-State Resistance: 24 Ohms
  • Load Current: 165mA
  • Output Type: AC and DC
  • Mounting: Through-Hole
  • Package: 16-DIP
  • Applications: Industrial Control and Power Management
