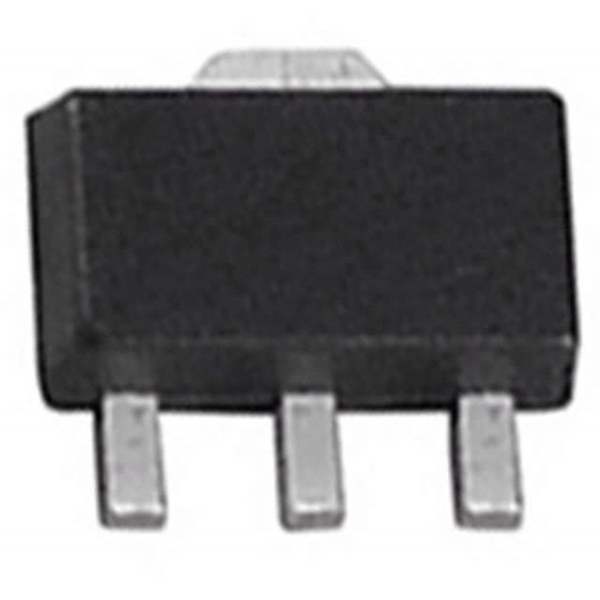

TLE4935G Real Image
Same model may have multiple batches, images only for reference.

TLE4935G

Part No TLE4935G
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH SOT89-3
Datasheet
TLE4935G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 20mT Trip, -20mT Release
Testing Conditions 25°C
Supply Voltage - Operating 4 V to 18 V
Current - Supply (Max) 5mA
Current - Output (Max) 100mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package SOT-89-3
Win Source Part Number 1108691-TLE4935G
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive, Power Management
Ultra Librarian 3D Model Ultra Librarian TLE4935G CAD Model

Description

The Infineon Technologies TLE4935G is a temperature compensated Hall Effect sensor designed for latch applications.

  • Output Type: Open Collector
  • Polarization: South Pole
  • Sensing Range: 20mT trip and -20mT release
  • Case: SOT-89-3
  • Supply Voltage: 4V to 18V
  • Maximum Current Supply: 5mA
  • Maximum Output Current: 100mA
  • Status: Obsolete(EOL)
