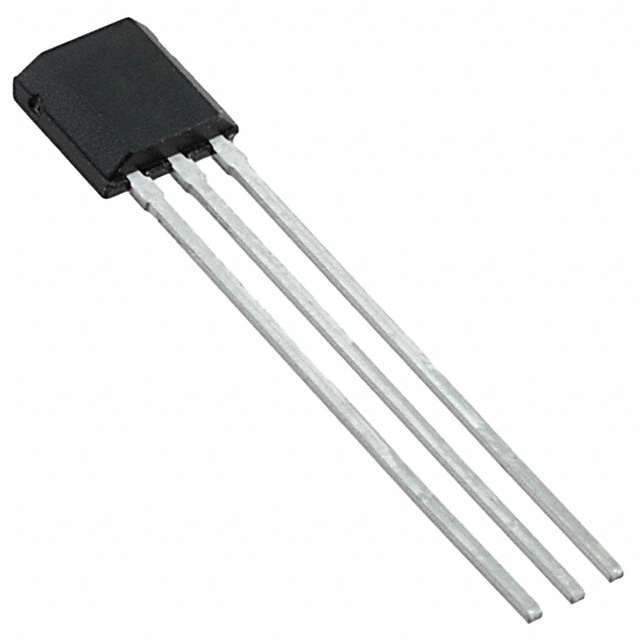

Same model may have multiple batches, images only for reference.

TLE4998C3XALA1

Name: TLE4998C3XALA1
Brand: Infineon Technologies
SKU: 1041508
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TLE4998C3XALA1
Manufacturer	Infineon Technologies
Catalog	Magnetic Sensors - Linear, Compass (ICs)
Description	SENSOR HALL PWM SSO3-10 / Hall Effect Sensor Single Axis PG-SSO-3-10
Datasheet	TLE4998C3XALA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Magnetic Sensors - Linear, Compass (ICs)
Mfr	Infineon Technologies
Series	Automotive, AEC-Q100
Package	Cut Tape (CT),Tape & Box (TB)
Technology	Hall Effect
Axis	Single
Output Type	PWM
Sensing Range	±50mT, ±100mT, ±200mT
Voltage - Supply	4.5V ~ 5.5V
Current - Supply (Max)	8mA
Current - Output (Max)	5mA
Resolution	16 b
Bandwidth	Programmable
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Features	Selectable Scale, Temperature Compensated
Supplier Device Package	PG-SSO-3-10
Mounting Type	Through Hole
Package / Case	3-SSIP, SSO-3-10
Base Product Number	TLE4998
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	TLE4998C3XALA1TB,TLE4998C3CT,2156-TLE4998C3XALA1,TLE4998C3XALA1CT,TLE4998C3,TLE4998C3TB-ND,SP000476468,TLE4998C3CT-ND,TLE4998C3-ND,TLE4998C3TB,INFINFTLE4998C3XALA1
Standard Package	2,000
Win Source Part Number	1041508-TLE4998C3XALA1
Ultra Librarian 3D Model	Ultra Librarian TLE4998C3XALA1 CAD Model

Alternative Products

Description

The TLE4998C3XALA1 is a magnetic sensor designed for linear and compass applications from Infineon Technologies.

Application: Linear and compass
Axis: Single-Axis
Technology: Hall Effect
Scale: Selectable
Temperature Compensation: Yes
Automotive Applications: Yes
Output Type: PWM
Bandwidth: Programmable
Supply Current (Max): 8mA
Output Current (Max): 5mA
Sensing Range: ±50mT, ±100mT, and ±200mT
Resolution: 16 bits
Voltage Supply: 4.5V and 5.5V
Package: Through-Hole
Package Types: 3-SSIP and SSO-3-10
Series: TLE4998
