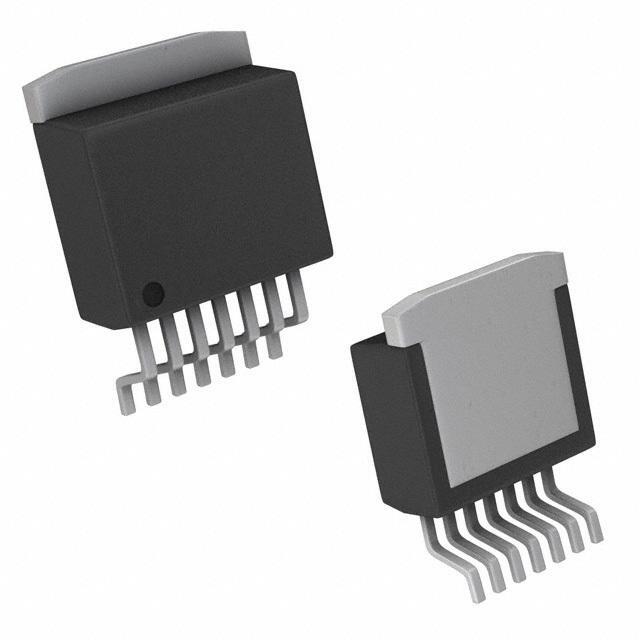

TLE5206-2G

Name: TLE5206-2G
Brand: Infineon Technologies
SKU: 686857
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLE5206-2G
Manufacturer	Infineon Technologies
Catalog	PMIC - Motor Drivers, Controllers
Description	5-A H-Bridge for DC-Motor Applications
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Infineon Technologies
Series	SPT
Packaging	Reel - TR
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	Parallel
Technology	DMOS
Applications	Automotive
Output Current	5A
Operating Supply Voltage	5.3 V ~ 40 V
Voltage - Load	5.3 V ~ 40 V
Operating Temperature Range	-40°C ~ 150°C (TJ)
Mounting	SMD
Package	TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
Manufacturer Package	PG-TO263-7
Win Source Part Number	1269545-TLE5206-2G
Manufacturer Homepage	www.infineon.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TLE 5206-2
Introduction Date	January 10, 1999
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2019
Ultra Librarian 3D Model	Ultra Librarian TLE5206-2G CAD Model

Alternative Products

Description

The Infineon Technologies TLE5206-2G is a fully integrated driver with a control and power stage.

Operating Supply Voltage: 5.3 V to 40 V
Application: automotive
Output Configuration: half-bridge
Motor Type: brushed DC motors
Technology: DMOS
Output Current: 5A
Package: TO-263-8, D2Pak
Manufacturer Package: PG-TO263-7
Supply and Demand Status: limited
