Same model may have multiple batches, images only for reference.

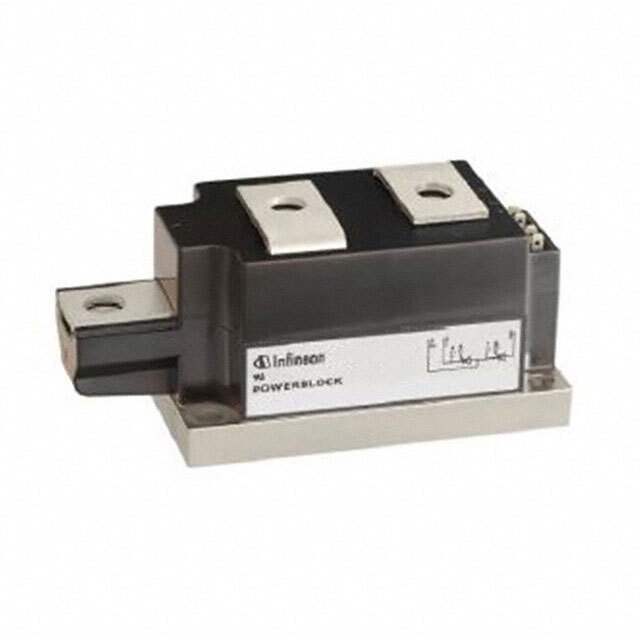

TT330N12KOFHPSA2 Real Image
Same model may have multiple batches, images only for reference.

TT330N12KOFHPSA2

Part No TT330N12KOFHPSA2
Manufacturer Infineon Technologies
Catalog TVS - Thyristors
Description THYR / DIODE MODULE DK
Datasheet
TT330N12KOFHPSA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr Infineon Technologies
Package Tray
Product Status Obsolete
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 330 A
Current - On State (It (RMS)) (Max) 520 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 12500A @ 50Hz
Current - Hold (Ih) (Max) 300 mA
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Chassis Mount
Package / Case Module
Base Product Number TT330N12
Standard Package 3 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 846844-TT330N12KOFHPSA2
Ultra Librarian 3D Model Ultra Librarian TT330N12KOFHPSA2 CAD Model

Description

The TT330N12KOFHPSA2 is a thyristor SCR module used in discrete semiconductor applications.

  • Connection: series connection of two SCRs
  • Maximum Voltage Off State: 1.6 kV
  • Maximum Gate Trigger Voltage: 2V
  • Peak Output Current: 330A
  • Temperature Range: -40°C to 130°C
  • Mounting: chassis mounting
