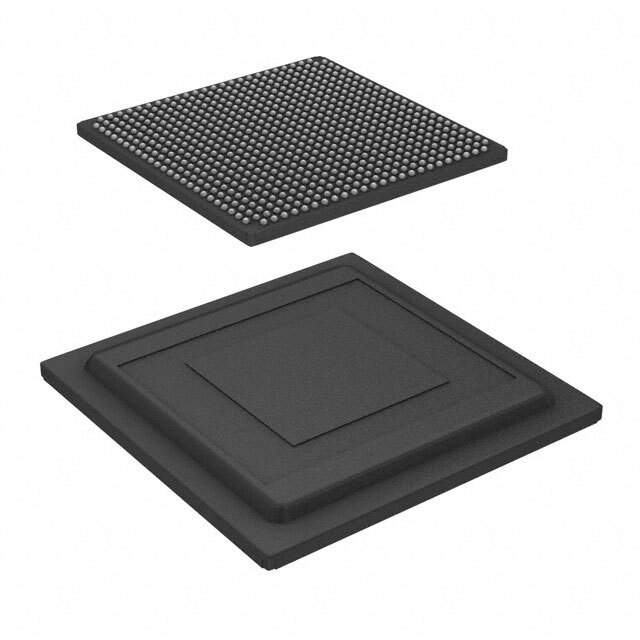

5AGXBA1D4F27C4N Real Image
Same model may have multiple batches, images only for reference.

5AGXBA1D4F27C4N

Part No 5AGXBA1D4F27C4N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 336 I/O 672FBGA  /  series Field Programmable Gate Array (FPGA) IC 336 8666112 75000 672-BBGA, FCBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria V GX
Package Tray
Product Status Obsolete
Number of LABs/CLBs 3537
Number of Logic Elements/Cells 75000
Total RAM Bits 8666112
Number of I/O 336
Voltage - Supply 1.07V ~ 1.13V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 672-BBGA, FCBGA
Supplier Device Package 672-FBGA (27x27)
Base Product Number 5AGXBA1
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Other Names 544-3508,965622,5AGXBA1D4F27C4N-ND
Standard Package 40
Win Source Part Number 1010112-5AGXBA1D4F27C4N
Ultra Librarian 3D Model Ultra Librarian 5AGXBA1D4F27C4N CAD Model

Description

The 1010112-5AGXBA1D4F27C4N is an embedded field programmable gate array (FPGA) from the Arria V GX series.

  • Logic Elements/Cells: 75000
  • LABs/CLBs: 3537
  • I/Os: 336
  • Total RAM: 8666112 bits
  • Voltage Supply: 1.07V to 1.13V
  • Package: 672-BBGA, FCBGA
  • Mounting: SMD (SMT) technology
  • Temperature Range: 0°C to 85°C (TJ)
  • Package: tray
  • Standard Package: 40
  • Mfr: Intel
