Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Intel
Series Enpirion®
Package Tape & Reel
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 6.6V
Voltage - Output 1 0.75 ~ 6.28V
Current - Output (Max) 4A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 95%
Mounting SMD (SMT)

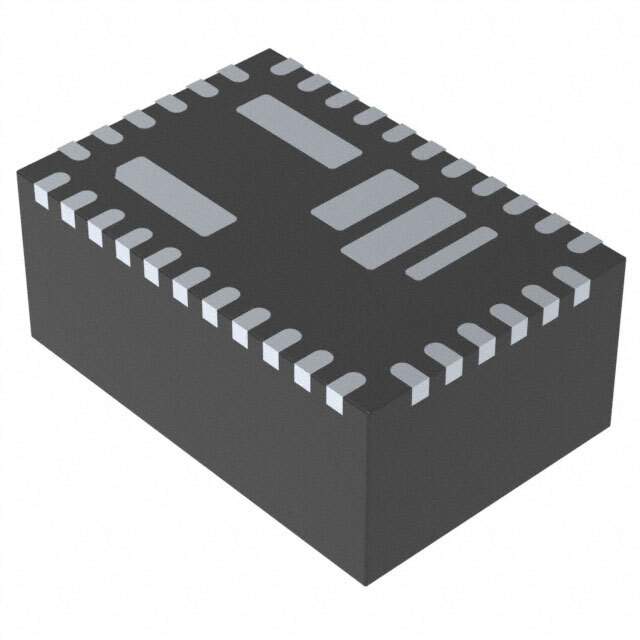

Package / Case 34-PowerBFQFN Module
Dimension 0.24" L x 0.16" W x 0.10" H (6.0mm x 4.0mm x 2.5mm)
Supplier Device Package 34-QFN (4x6)
Control Features Enable, Active High
Base Product Number EN6340
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 544-3428-6,544-3428-1,EN6340QI-ND,544-3428-2,974145
Standard Package 500
Win Source Part Number 992310-EN6340QI
Ultra Librarian 3D Model Ultra Librarian EN6340QI CAD Model

Description

The EN6340QI is a non-isolated PoL module that is designed for use in various applications.

  • Type: Non-isolated PoL module
  • Manufacturer: Intel
  • Application: ITE (commercial) applications
  • Features: Remote on/off, OCP, OTP, SCP, UVLO
  • Efficiency: 95%
