Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Core Processor ARM Cortex-M4
Part Core Size 32-Bit
Speed(Frequency) 168MHz
Number of I/O 72
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
Data RAM Size 192K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 13x12b, D/A 2x12b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 90-WLCSP
Win Source Part Number 212314-STM32F405OGY6TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name STM32F405OG
ECCN 3A991.a.2
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian STM32F405OGY6TR CAD Model

Description

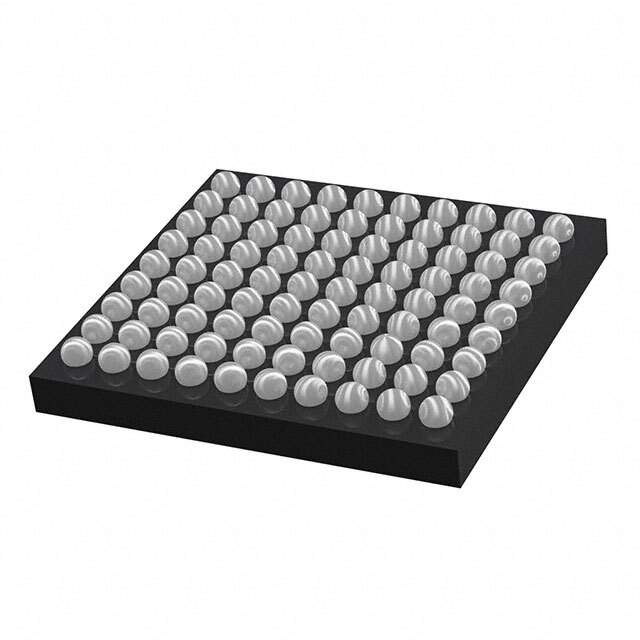

STM32F405OGY6TR Microcontroller

The STM32F405OGY6TR is a high-performance microcontroller unit (MCU) from STMicroelectronics, designed to offer a perfect blend of real-time capabilities, digital signal processing, and low-power operation. This component is a part of the STM32F4 series, which is based on the ARM Cortex-M4 processor with FPU (floating-point unit). It operates at a frequency of up to 168 MHz, providing the computational power necessary for complex and demanding applications.

The STM32F405OGY6TR comes in a compact UFBGA176 package and is equipped with a range of features that make it ideal for a wide array of applications, including industrial control, medical equipment, consumer electronics, and Internet of Things (IoT) devices. It includes 1MB of Flash memory and 192+4KB of SRAM, ensuring ample storage for your application's code and data.

Connectivity is a strong suit for this MCU, as it includes a variety of peripherals such as three I2C interfaces, four USARTs and two UARTs, six SPI/I2S interfaces, and two CAN interfaces. These options provide flexibility for communication with other devices and systems. Additionally, it supports USB OTG FS/HS, providing further connectivity options with USB devices.

For real-time performance, the STM32F405OGY6TR features twelve 16-bit timers, two 32-bit timers, and a SysTick timer, all of which can be used for precise event timing and waveform generation. It also comes with a True Random Number Generator (TRNG) for enhanced security features and applications requiring random number generation.

Advanced analog capabilities are also present in this MCU, including three 12-bit ADCs with 24 channels and two DACs, enabling it to handle complex analog signals and convert them for digital processing. The MCU also features an internal voltage reference, temperature sensor, and PLLs for clock frequency multiplication.

For energy-conscious designs, the STM32F405OGY6TR supports multiple power modes, including a low-power run mode, sleep mode, and standby mode, allowing for efficient power management based on the application's needs.

Overall, the STM32F405OGY6TR is a robust and versatile MCU that offers the perfect solution for projects requiring high CPU performance, a wide range of peripherals, and efficient power consumption, all within a small form factor.
