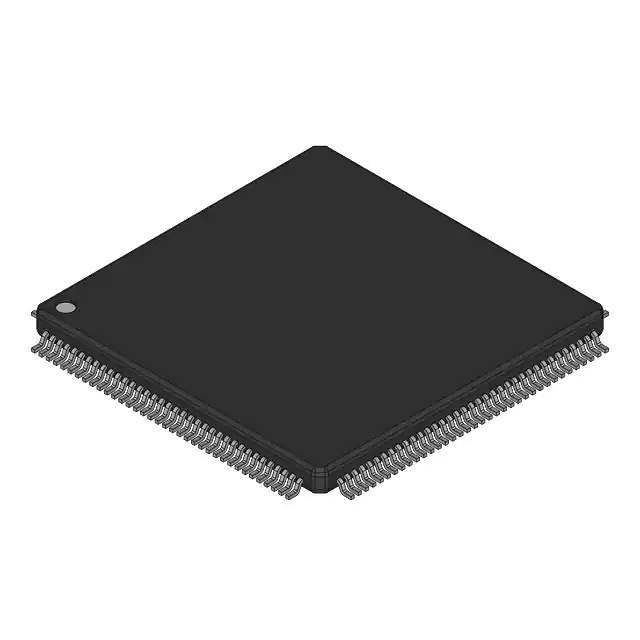

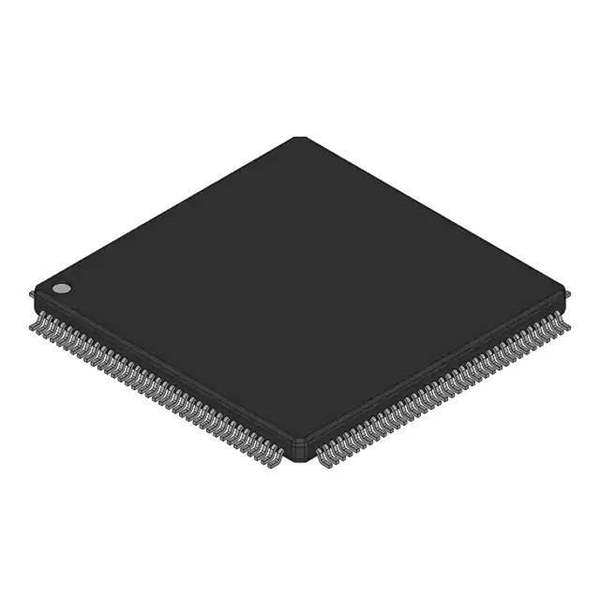

JA80386EXTC33 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Intel
Series i386
Package Bulk
Product Status Active
Core Processor Intel386 EX
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 33MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Temperature Range - Operating -40°C ~ 120°C (TC)
Mounting Type Surface Mount
Package / Case 144-TQFP
Supplier Device Package 144-TQFP (20x20)
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 826445-JA80386EXTC33
Ultra Librarian 3D Model Ultra Librarian JA80386EXTC33 CAD Model

Description

The Intel386 EX 826445-JA80386EXTC33 is a high-performance embedded microprocessor.

  • Architecture: 32-bit
  • Core: Single
  • Speed: 33MHz
  • Package: 144-TQFP
  • Features: DRAM RAM controller
  • Status: Active
  • Temperature Range: -40°C to 120°C
