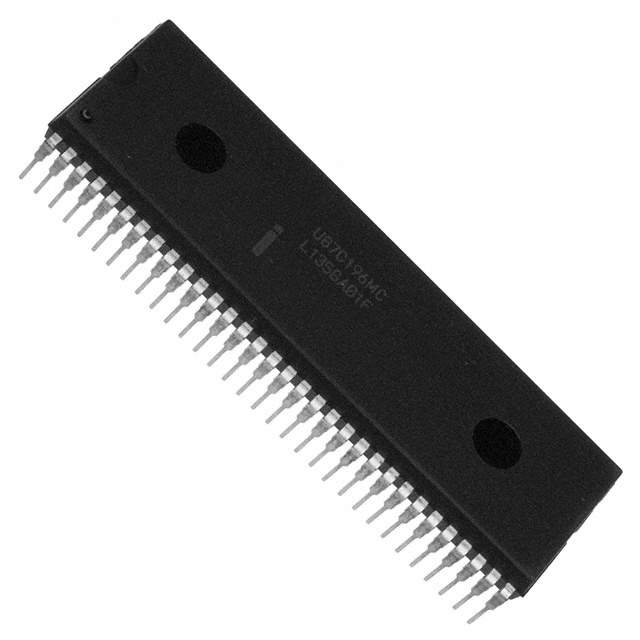

The U87C196MC is a 16-bit microcontroller from Intel, part of the MCS-96 family. This microcontroller is designed for embedded control applications, particularly those requiring high-speed processing and sophisticated peripheral control. It integrates a powerful CPU core with a variety of on-chip peripherals to provide a complete solution for real-time control systems.

Applications:

• Motor control: Used in servo motor control, stepper motor control, and other motor drive applications.
• Robotics: Implemented in robotic systems for controlling movement, sensing, and communication.
• Industrial automation: Utilized in programmable logic controllers (PLCs) and other industrial control equipment.
• Automotive systems: Found in engine control units (ECUs), anti-lock braking systems (ABS), and other automotive control systems.
• Data acquisition: Used in data loggers, sensor interfaces, and other data acquisition systems.

Features:

• 16-bit CPU core: Provides high-speed processing capabilities.
• On-chip peripherals: Includes A/D converters, timers, PWM outputs, serial communication interfaces, and other peripherals.
• Interrupt controller: Supports multiple interrupt sources with programmable priority levels.
• Memory interface: Allows for easy interfacing to external memory.
• PWM outputs: Provides pulse-width modulation outputs for controlling motors and other actuators.

Benefits:

• High performance: Enables real-time control of complex systems.
• Integrated solution: Reduces the need for external components, simplifying system design and reducing cost.
• Flexible configuration: Allows for customization to meet the specific requirements of different applications.
• Reduced development time: The comprehensive set of on-chip peripherals simplifies software development.
• Improved system reliability: The integrated design reduces the number of external connections, improving system reliability.

Additional Details:

The U87C196MC typically includes features such as a watchdog timer and power-saving modes. Specific memory configurations vary depending on the exact model. The microcontroller operates from a 5V power supply. The operating temperature range is typically 0°C to +70°C. Datasheets provide detailed information on memory organization, pinout, and electrical characteristics.
