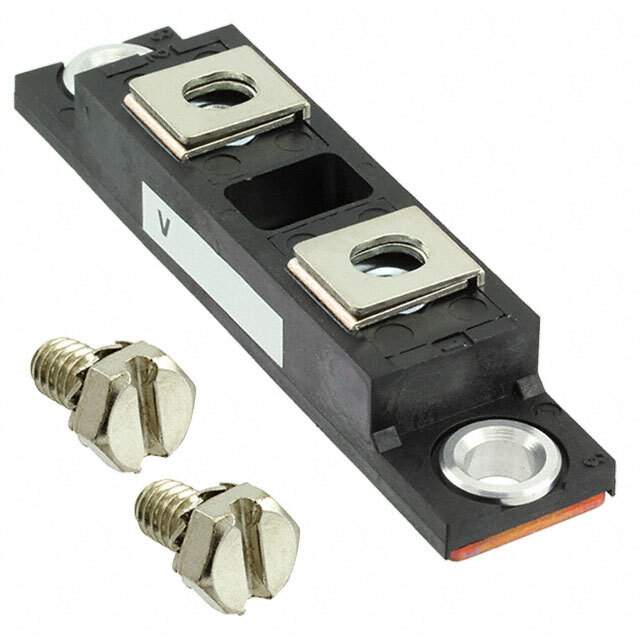

The 203CNQ100PBF is a 200 Amp, 100 Volt Schottky Rectifier from International Rectifier (now Infineon Technologies). It's designed for high-current applications requiring efficient rectification and low forward voltage drop. The 'PBF' suffix indicates that it's a lead-free component.

Applications

• Switching Power Supplies: Used as a rectifier in high-frequency switching power supplies.
• Freewheeling Diodes: Employed as freewheeling diodes in inductive load circuits.
• Polarity Protection: Provides reverse polarity protection in various electronic circuits.
• High Current Rectification: Used in applications requiring high current rectification, such as battery charging systems.
• Renewable Energy Systems: Employed in solar power inverters and wind turbine converters.

Features

• High Current Capability: Capable of handling up to 200 Amps of forward current.
• Low Forward Voltage Drop: Minimizes power losses and improves efficiency.
• High Surge Current Capability: Withstands high surge currents, providing robustness during transient events.
• Schottky Barrier Technology: Provides fast switching speeds and low reverse recovery time.
• Lead-Free Finish: Complies with environmental regulations.

Benefits

• High Efficiency: Low forward voltage drop reduces power dissipation, resulting in higher efficiency.
• Robustness: High surge current capability ensures reliable operation under transient conditions.
• Fast Switching: Schottky technology enables fast switching speeds, suitable for high-frequency applications.
• Reduced Heat Dissipation: Lower power losses result in reduced heat generation, simplifying thermal management.
• Environmentally Friendly: Lead-free finish complies with environmental regulations.

Additional Details

The 203CNQ100PBF consists of two Schottky rectifier dies in a common cathode configuration. Its low forward voltage drop (typically around 0.8 V at rated current) significantly reduces power losses compared to standard silicon diodes. The high surge current capability allows it to withstand transient overloads without damage. The device is typically mounted on a heatsink to dissipate heat generated during operation. The recommended operating temperature range is typically -55°C to +175°C. This device is commonly found in applications demanding high efficiency and reliability, such as high-power DC-DC converters and uninterruptible power supplies (UPS). The fast recovery characteristics of the Schottky diode minimize reverse recovery losses, further enhancing efficiency in high-frequency circuits.

The specific package style for the 203CNQ100PBF is typically a TO-247 or similar high-power package, designed to facilitate effective heat dissipation. Proper heatsinking is crucial to maintain the diode's operating temperature within safe limits and ensure its long-term reliability. The maximum reverse leakage current is a key parameter to consider in high-temperature applications, as it can impact overall system efficiency. The device's robust design and high-performance characteristics make it a popular choice for demanding power electronics applications.
