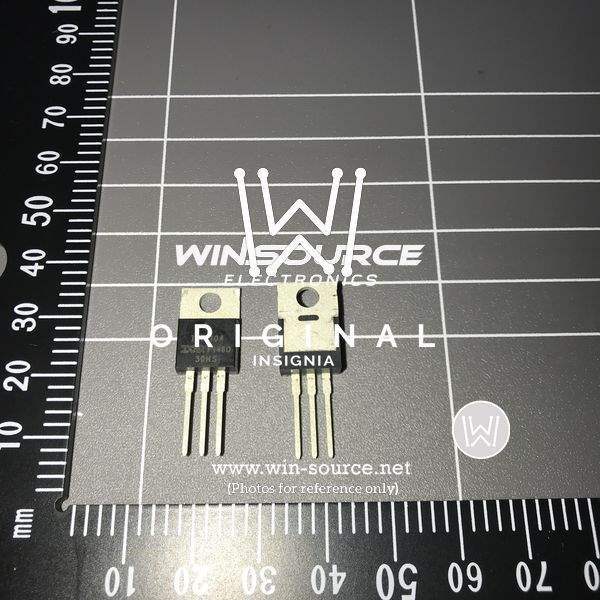

The IRF1104 is an N-channel power MOSFET from International Rectifier (now Infineon Technologies). It's designed for high-current, high-speed switching applications. This MOSFET features a low on-resistance and a high avalanche energy rating, making it suitable for demanding power control circuits.

Applications

• Motor control: Controlling DC motors in industrial equipment, robotics, and automotive systems.
• DC-DC converters: Used in switching power supplies and voltage regulators.
• Inverters: Powering inverters for solar energy systems and uninterruptible power supplies (UPS).
• Solid-state relays: Replacing electromechanical relays for faster switching and longer lifespan.
• Audio amplifiers: Providing power amplification in high-fidelity audio systems.

Features

• N-channel MOSFET: Offers fast switching speeds and efficient operation.
• Low on-resistance (RDS(on)): Minimizes power losses and improves efficiency.
• High drain-source voltage (VDS): Suitable for high-voltage applications.
• High drain current (ID): Capable of handling large currents.
• Avalanche rated: Withstands high-energy pulses in inductive switching circuits.

Benefits

• High efficiency: Reduces power dissipation and heat generation.
• Fast switching speeds: Enables high-frequency operation and improved transient response.
• Robust performance: Withstands demanding operating conditions.
• Simplified design: Reduces component count and simplifies circuit layout.
• Improved system reliability: Offers stable and consistent performance.

Additional Details

The IRF1104 is typically mounted on a heatsink to dissipate heat generated during operation. Detailed specifications, including drain-source voltage, drain current, on-resistance, and gate threshold voltage, are available in the manufacturer's datasheet. The datasheet also provides information on thermal resistance, switching characteristics, and safe operating area. Proper gate drive circuitry is essential for achieving optimal performance and preventing damage to the MOSFET. It is important to select appropriate gate resistors and other components to ensure fast and clean switching.

Care should be taken to avoid exceeding the maximum ratings of the MOSFET, as this can lead to permanent damage. Overvoltage and overcurrent protection circuitry may be required in certain applications to protect the MOSFET from damage due to transient events.
