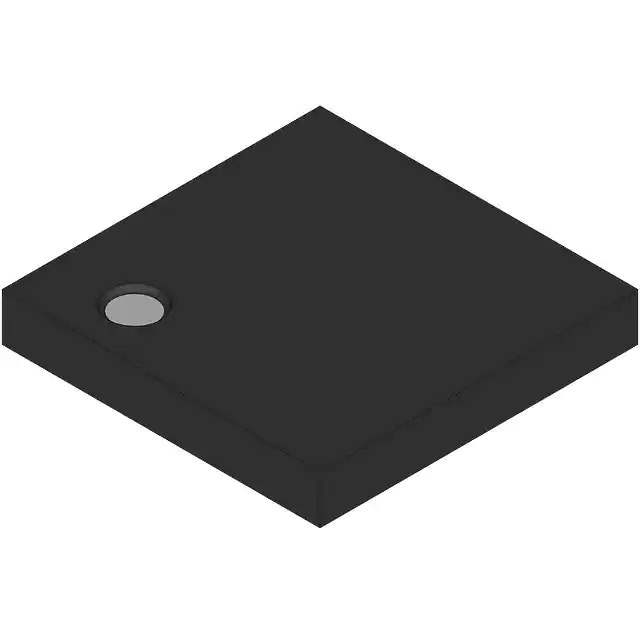

ISL22424WFR16Z Real Image
Same model may have multiple batches, images only for reference.

ISL22424WFR16Z

Part No ISL22424WFR16Z
Manufacturer Intersil
Catalog Data Acquisition - Digital Potentiometers
Description DIGITAL POTENTIOMETER, 2 FUNC, 1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Digital Potentiometers
Mfr Intersil
Series XDCP™
Package Bulk
Product Status Active
Programmable Not Verified
Taper Linear
Configuration Potentiometer
Number of Circuits 2
Number of Taps 256
Resistance (Ohms) 10k
Interface SPI
Memory Type Non-Volatile
Voltage - Supply ±2.25V ~ 5.5V
Tolerance ±20%
Temperature Coefficient (Typ) ±85ppm/°C
Mounting Type Surface Mount
Supplier Device Package 16-QFN (4x4)
Package / Case 16-TFQFN Exposed Pad
Temperature Range - Operating -40°C ~ 125°C
Resistance - Wiper (Ohms) (Typ) 70
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 921807-ISL22424WFR16Z
Ultra Librarian 3D Model Ultra Librarian ISL22424WFR16Z CAD Model

Description

The Intersil ISL22424WFR16Z is a digital potentiometer integrated circuit (IC) from the XDCP™ series.

  • Application: Data Acquisition
  • Package: Bulk
  • Circuits: Two
  • Tolerance: ±20%
  • Memory Type: Non-Volatile
  • Interface: SPI
  • Resistance: 10k ohms
  • Taper: Linear
  • Taps: 256
  • Temperature Coefficient: ±85ppm/°C
  • Wiper Resistance: 70 ohms (typical)
  • Voltage Supply Range: ±2.25V to 5.5V
  • Mounting: Surface Mount
  • Package: 16-TFQFN with Exposed Pad
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • Standard Package Quantity: 1 piece
  • ECCN: EAR99
