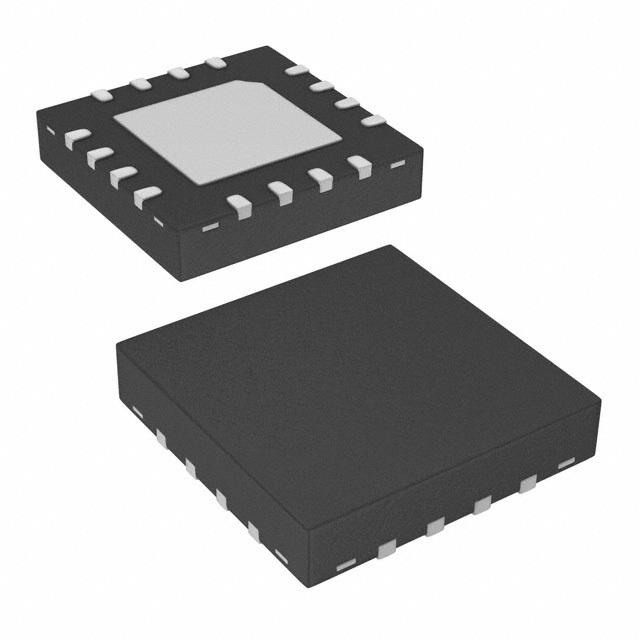

ISL6520CR Intersil
Same model may have multiple batches, images only for reference.

ISL6520CR

Part No ISL6520CR
Manufacturer Intersil
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 16QFN
Datasheet
ISL6520CR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Transistor Driver
Purpose Step-Down
Topology Buck
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 4.5 V to 5.5 V
Frequency - Switching 300kHz
Duty Cycle (Max) 100%
Synchronous Rectifier Yes
Clock Sync No
Control Features Phase Control
Temperature Range - Operating 0°C to 70°C (TA)
Case / Package 16-QFN (4x4)
Win Source Part Number 130781-ISL6520CR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL6520CR CAD Model

Description

The Intersil 130781-ISL6520CR is a transistor driver designed for step-down purposes.

  • Supply Voltage: 4.5 V to 5.5 V
  • Topology: Buck
  • Switching Frequency: 300kHz
  • Output Phase: One
  • Synchronous Rectifier: Yes
  • Duty Cycle: Up to 100%
  • Package: 16-QFN (4x4)
  • Temperature Range: 0°C to 70°C (TA)
  • Features: Phase Control
  • Application: Integrated Circuits
  • Lifecycle Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Popularity: Medium
