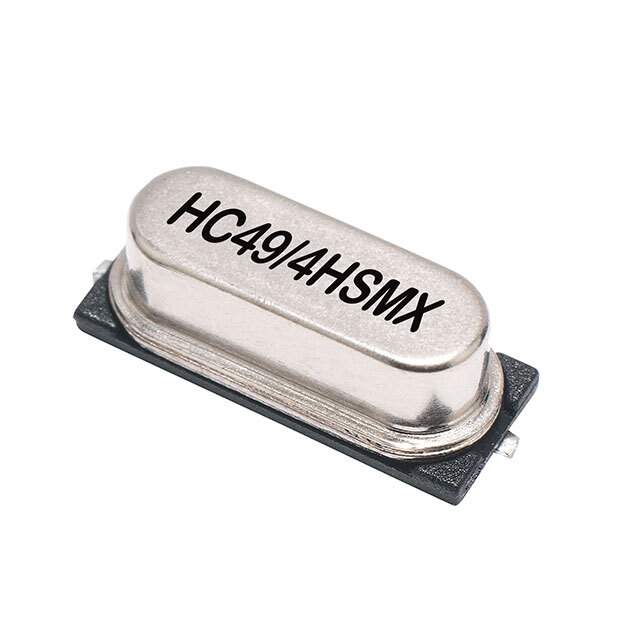

LFXTAL021675REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL021675REEL

Part No LFXTAL021675REEL
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 10.0000MHZ 18PF SMD / 10 MHz ±30ppm Crystal 18pF 40 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr IQD Frequency Products
Series HC49/4HSMX
Package Tape & Reel
Type MHz Crystal
Frequency 10 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.150" W (11.40mm x 3.80mm)
Height - Seated (Max) 0.169" (4.30mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 1923-1504-2,1923-1504-1,LFXTAL021675CUTT,1923-1504-6
Standard Package 1,000
Win Source Part Number 992557-LFXTAL021675REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL021675REEL CAD Model

Description

The IQD Frequency Products LFXTAL021675REEL is a high-quality MHz crystal that is designed to provide reliable performance in a variety of applications.

  • Supply and Demand Status: Limited
  • Popularity: High demand
  • Manufacturer: IQD Frequency Products
