Same model may have multiple batches, images only for reference.

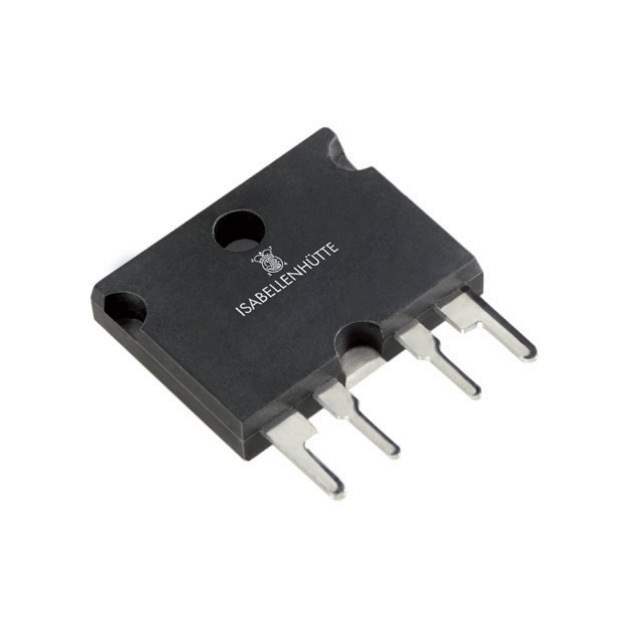

PBV-R500-F1-1.0 Isabellenhuette USA
Same model may have multiple batches, images only for reference.

PBV-R500-F1-1.0

Part No PBV-R500-F1-1.0
Manufacturer Isabellen
Catalog Through Hole Resistors
Description RESISTOR - ISA-PLAN THROUGH-HOLE
Datasheet
PBV-R500-F1-1.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307354-PBV-R500-F1-1.0
Manufacturer Isabellenhuette USA
Category Resistors-Through Hole Resistors
Packaging  Tray
Part Status Active
Resistance (Ohms) 500 mOhms
Tolerance ±1%
Power (Watts) 10W
Features Pulse Withstanding
Temperature Coefficient ±30ppm/°C
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian PBV-R500-F1-1.0 CAD Model

Description

Features
▪ Up to 10 W permanent power
▪ 4-terminal connection
▪ Pulse power rating 2 J for 10 ms
▪ Excellent long-term stability
▪ RoHS 2011/65/EU compliant
