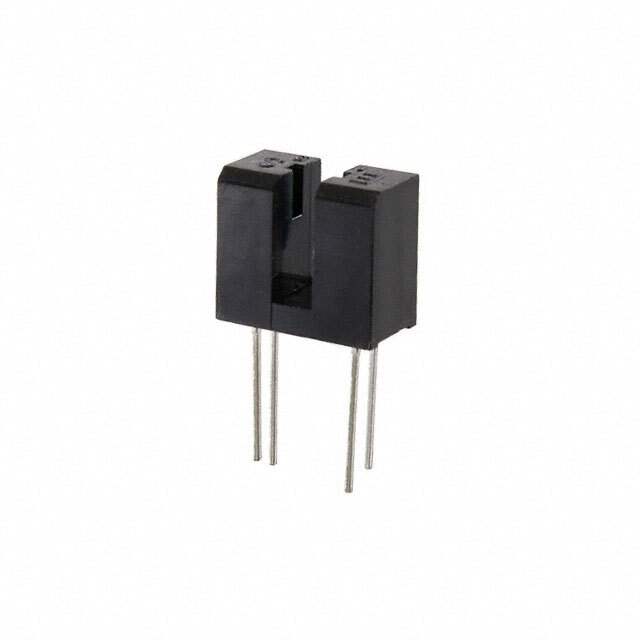

H22A3 Real Image
Same model may have multiple batches, images only for reference.

H22A3

Part No H22A3
Manufacturer Isocom Components 2004 LTD
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPTO SLOT 3MM TRANS THRU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Isocom Components 2004 LTD
Packaging Bulk
Status Active
Sensing Distance 0.118" (3mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 5.5mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Response Time 8μs, 50μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 067769-H22A3
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian H22A3 CAD Model

Description

The Isocom Components 2004 LTD 067769-H22A3 is an active electronic component with medium popularity in the market. This unamplified sensor has a sensing distance of 0.118" (3mm) and a response time of 8μs, 50μs. It is designed for through-hole mounting and has a maximum collector-emitter breakdown voltage of 30V. The temperature range for operating is -25°C to 85°C. It is available in bulk packaging with a quantity of 500 per package.
