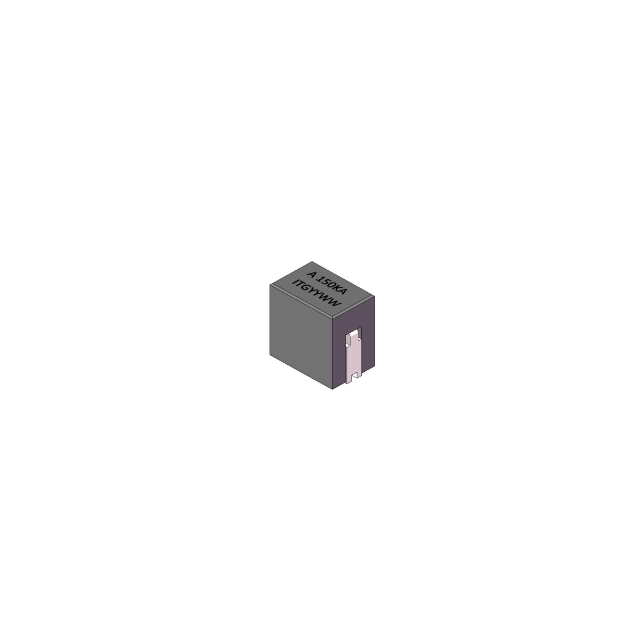

Same model may have multiple batches, images only for reference.

AH3740A-100K

Name: AH3740A-100K
Brand: ITG Electronics, Inc.
SKU: 1381380
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AH3740A-100K
Manufacturer	ITG Electronics, Inc.
Catalog	Fixed Inductors
Description	FIXED IND 100NH 78A 0.145MOHM SM / 100 nH Shielded Inductor 78 A 0.145mOhm Nonstandard
Datasheet	AH3740A-100K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	ITG Electronics, Inc.
Series	AH3740
Package	Tape & Reel (TR)
Type	-
Material - Core	Ferrite
Inductance	100 nH
Tolerance	±10%
Current Rating (Amps)	78 A
Current - Saturation (Isat)	95A
Shielding	Shielded
DC Resistance (DCR)	0.145mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-55°C ~ 130°C
Inductance Frequency - Test	500 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.378" L x 0.252" W (9.60mm x 6.40mm)
Height - Seated (Max)	0.402" (10.20mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	100 pcs
Win Source Part Number	1381380-AH3740A-100K
Ultra Librarian 3D Model	Ultra Librarian AH3740A-100K CAD Model

Alternative Products

Description

The 1381380-AH3740A-100K is a fixed inductor from the AH3740 series.

Series: AH3740
Packaging: Tape & Reel
Shielding: Shielded
Size: 0.378" L x 0.252" W (9.60mm x 6.40mm)
Inductance: 100nH
Temperature Range: -55°C to 130°C
Tolerance: ±10%
Core Material: Ferrite
DC Resistance: 0.145mOhm
Manufacturer: ITG Electronics, Inc.
Current Rating: 78A
Moisture Sensitivity Level: 1 (Unlimited)
Standard Package: 100 pieces
