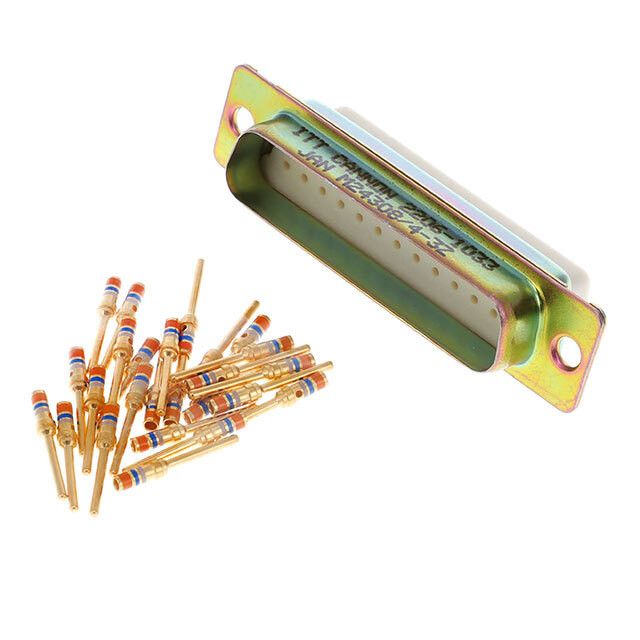

M24308/4-3Z ITT Cannon, LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

M24308/4-3Z

Part No M24308/4-3Z
Manufacturer ITT Cannon, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLG 25P PNL MNT CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsD-Sub, D-Shaped ConnectorsD-Sub Connector Assemblies
Mfr ITT Cannon, LLC
Series 24308-Style, D*MAM
Packaging Bulk
Part Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Crimp
Shell Material, Finish Steel, Yellow Chromate Plated Zinc
Contact Finish Gold
Contact Finish Thickness 50.0μin (1.27μm)
Current Rating (Amps) 7.5A
Features Shielded
Dielectric Material Thermoplastic
Operating Temperature -55°C ~ 150°C
Base Product Number M24308/4
Ultra Librarian 3D Model Ultra Librarian M24308/4-3Z CAD Model
