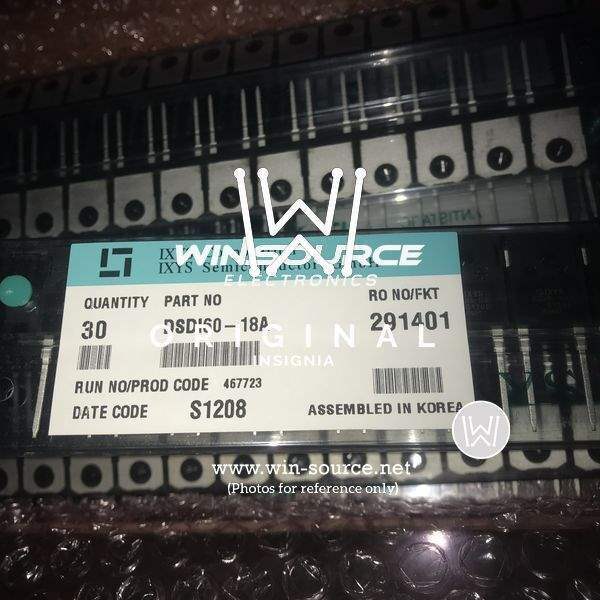

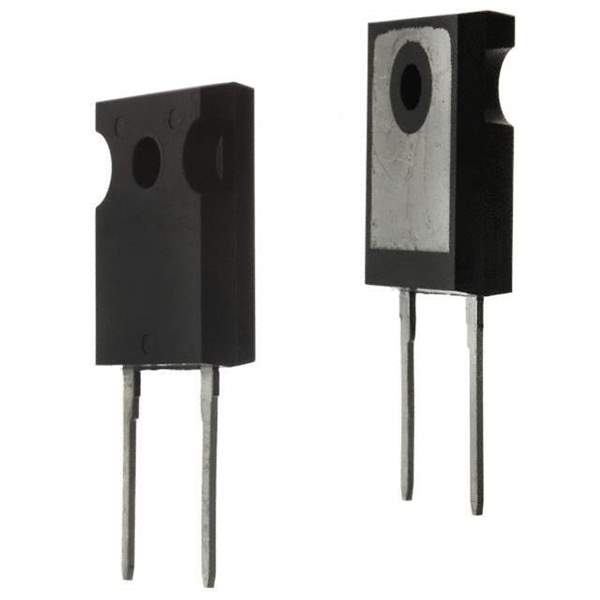

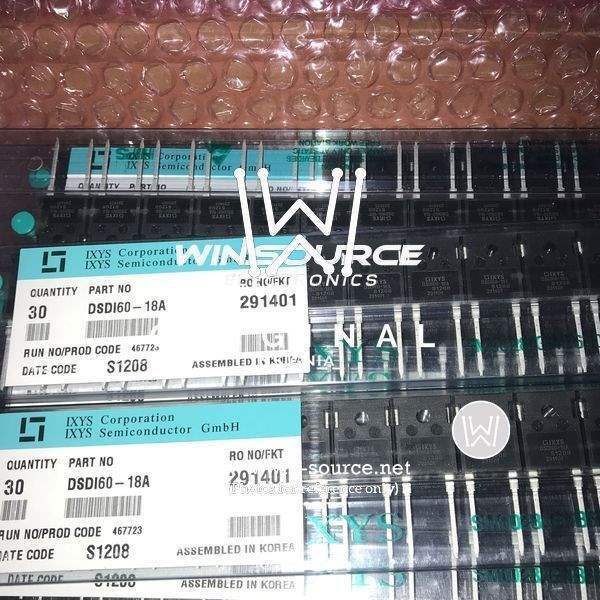

DSDI60-18A Real Image DSDI60-18A label picture DSDI60-18A label picture 2
Same model may have multiple batches, images only for reference.
DSDI60-18A Real Image DSDI60-18A label picture DSDI60-18A label picture 2
DSDI60-18A Real Image DSDI60-18A label picture DSDI60-18A label picture 2
Same model may have multiple batches, images only for reference.

DSDI60-18A

Part No DSDI60-18A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Single
Description Super Fast Recovery Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1800V
Current - Average Rectified (Io) 63A
Voltage - Forward (Vf) (Maximum) @ If 4.1V @ 70A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 300ns
Current - Reverse Leakage @ Vr 2mA @ 1800V
Mounting Style Through Hole
Package TO-247-2
Manufacturer Package TO-247AD
Operating Temperature - Junction -40°C ~ 150°C
Win Source Part Number 1169805-DSDI60-18A
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name DSDI60-18A
Introduction Date October 22, 2000
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian DSDI60-18A CAD Model

Description

The IXYS DSDI60-18A is a fast recovery diode with a current average rectified (Io) of 63A and reverse recovery time (trr) of 300ns.

  • Manufacturer: IXYS
  • Country of Origin: Republic of Korea
  • Current Average Rectified (Io): 63A
  • Reverse Recovery Time (trr): 300ns
  • Package: TO-247-2
  • Voltage Forward (Vf): 4.1V @ 70A
  • Voltage DC Reverse (Vr): 1800V
  • Popularity Rating: Medium
  • Supply and Demand Status: Limited
