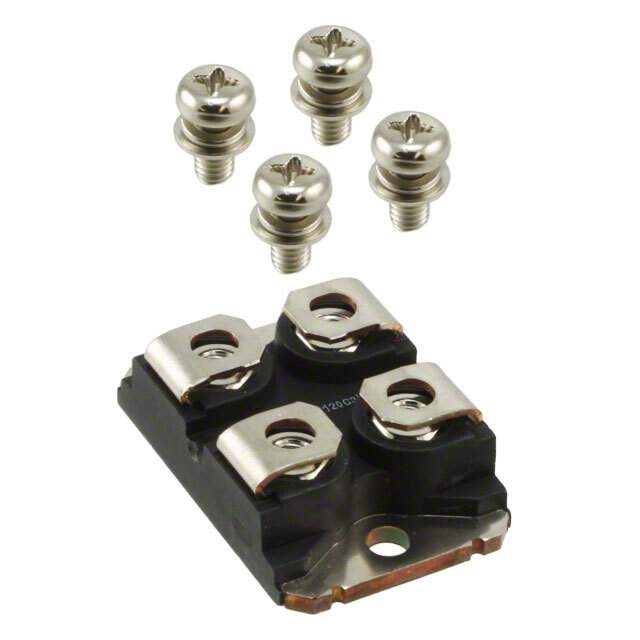

IXFN70N100X Real Image
Same model may have multiple batches, images only for reference.

IXFN70N100X

Part No IXFN70N100X
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 1000V 56A SOT227B / N-Channel 1000 V 56A (Tc) 1200W (Tc) Chassis Mount SOT-227B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer IXYS
Packaging Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 1000 V
Current - Continuous Drain (Id) @ 25°C 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 89mOhm @ 35A, 10V
Vgs(th) (Max) @ Id 6V @ 8mA
Gate Charge (Qg) (Max) @ Vgs 350 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 9150 pF @ 25 V
Power Dissipation (Max) 1200W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Supplier Device Package SOT-227B
Case / Package SOT-227-4, miniBLOC
Base Product Number IXFN70
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 10
Win Source Part Number 1323972-IXFN70N100X
Ultra Librarian 3D Model Ultra Librarian IXFN70N100X CAD Model

Description

The IXYS IXFN70N100X is an electronic component that is manufactured by IXYS.

  • Type: MOSFET (Metal Oxide)
  • FET Type: N-Channel
  • Drain to Source Voltage (Vdss): 1000 V
  • Current - Continuous Drain (Id): 56A (Tc) @ 25°C
  • Rds On (Max) @ Id, Vgs: 89mOhm @ 35A, 10V
  • Gate Charge (Qg) (Max) @ Vgs: 350 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 9150 pF @ 25 V
  • Win Source Part Number: 1323972-IXFN70N100X
  • Packaging: Tube
  • Standard Package: 10
  • Mounting Type: Chassis Mount
  • Category: Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
