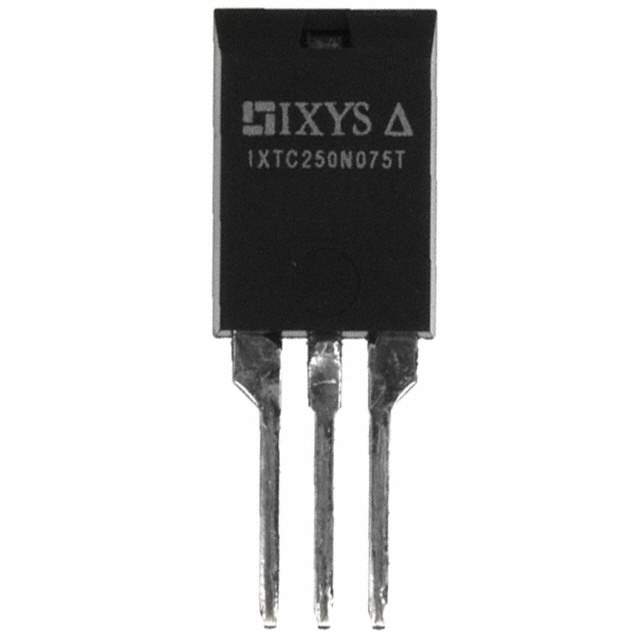

IXTC250N075T Real Image
Same model may have multiple batches, images only for reference.

IXTC250N075T

Part No IXTC250N075T
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 75V 128A ISOPLUS220 / N-Channel 75 V 128A (Tc) 160W (Tc) Through Hole ISOPLUS220™
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 75 V
Current - Continuous Drain (Id) @ 25°C 128A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 4.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 200 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9900 pF @ 25 V
Power Dissipation (Max) 160W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package ISOPLUS220™
Package / Case ISOPLUS220™
Base Product Number IXTC250
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346754-IXTC250N075T
Ultra Librarian 3D Model Ultra Librarian IXTC250N075T CAD Model

Description

IXTC250N075T is a N-channel MOSFET transistor from IXYS.

  • Drain to Source Voltage: 75V
  • Power Dissipation: 160W (Tc)
  • FET Type: N-Channel
  • Vgs (Max): ±20V
  • Current - Continuous Drain (Id): 128A (Tc)
  • Rds On (Max): 4.4mOhm @ 25A, 10V
  • Package: ISOPLUS220™
  • Operating Temperature Range: -55°C ~ 175°C (TJ)
  • Ideal for: use in discrete semiconductor products, transistors, FETs and MOSFETs
